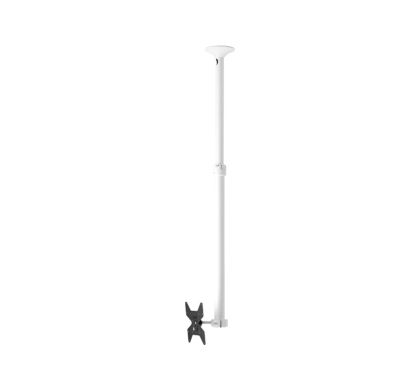

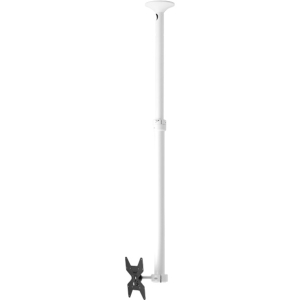

ATDEC Telehook Ceiling Mount for Flat Panel Display

TH-1040-CTLW
Please Call
Please contact us for pricing

Description

The TH-1040-CTLW is cutting edge ceiling mount offering superior display versatility, combined with enhanced safety features and hassle-free installation. The "donut" mounting head effortlessly rotates the screen through 360 degrees around the pole and to maximise display impact the VESA Ball Mount can infinitely adjust display position by 20 degrees in any direction. Display height is also customised with the telescopic pole adjustments. Installation is simple, with in-built safety features to prevent the unlikely event of the telescopic poles separating. Once installed, you're guaranteed a clean and professional finish by fully internal cable management, a dress cover to hide the ceiling connection and a clean pole without screw holes. Angled ceilings are accommodated with the raked ceiling accessory kit (TH-1040-RCA sold separately). You can also customize this mount to support two screens, back to back (TH-1040-CT-B2B sold separately).

Specifications

General Information

Manufacturer:
Atdec Pty Ltd
Manufacturer Website Address:
http://www.atdec.com
Brand Name:
Telehook
Product Name:
Flat Screen Ceiling Mount
Product Type:
Ceiling Mount

Product Information

Device Supported:
  • Flat Panel Display
Maximum Load Capacity:
24.95 kg
Maximum Screen Size Supported:
  • 43.2 cm (17")
Maximum Adjustable Height:
1800.10 mm
Features:
  • Pan
  • Swivel
  • Tilt
  • Adjustable Height
  • Durable

Physical Characteristics

Colour:
  • White
VESA Mount Compatible:
Yes
VESA Mount Standard:
  • 200 x 200
  • 200 x 100
  • 100 x 100
  • 75 x 75
Material:
  • Aluminium
  • Steel
  • Plastic
Height:
899.9 mm

Miscellaneous

Package Contents:
  • Mounting Plate
  • False Ceiling Cover
  • Pole Assembly
  • Mounting Plate Cover
  • VESA Plate
  • Tension Tool
  • Installation Guide
  • Mounting Hardware
Additional Information:
  • Designed for screens 17" or larger
  • Designed for flat ceilings with optional raked ceiling support
  • Donut style mounting with tension adjustment
  • Allows +/-20º pan and tilt with user adjustment
  • Allows 360º screen rotation with user adjustment
  • Allows 360º rotation around the pole with position set during installation
  • Quick-Attachment mechanism enables easy display mounting and replacement
  • Security screw provides enhanced theft resistance

Warranty

Standard Warranty:
10 Year
