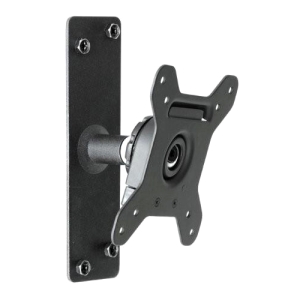

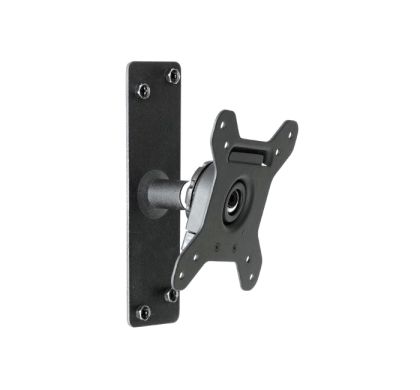

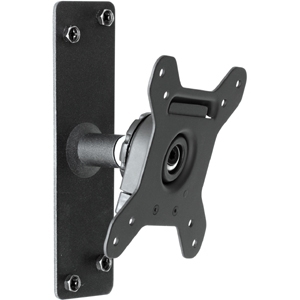

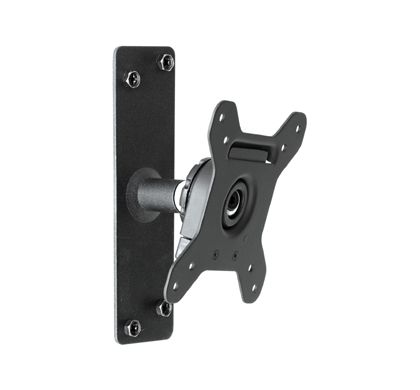

ATDEC Spacedec SD-WD Wall Mount for Flat Panel Display
Description
This adjustable wall mount is designed for LCD /LED displays and monitors up to 55 lbs. (25kg). It features a Quick Release head for easy screen mounting / maintenance and a ball-joint which allows tilt / pan adjustment, and landscape to portrait screen rotation. It comes with an easy installation guide, display and wall mounting hardware.
Specifications
General Information
Manufacturer:
Atdec Pty Ltd
Manufacturer Website Address:
http://www.atdec.com
Brand Name:
Spacedec
Product Model:
SD-WD
Product Name:
SD-WD Adjustable Wall Mount
Product Type:
Wall Mount
Product Information
Device Supported:
- Flat Panel Display
Maximum Load Capacity:
24.95 kg
Minimum Screen Size Supported:
30.5 cm (12")
Maximum Screen Size Supported:
- 61 cm (24")
Features:
- Swivel
- Tilt
Physical Characteristics
Colour:
- Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
- 100 x 100
- 75 x 75
Material:
- Aluminium
- Steel
- Plastic
Height:
180 mm
Depth:
77 mm
Miscellaneous
Package Contents:
- 1 x Wall Mount Assembly
- 1 x VESA Plate
- 1 x Tightening Tool
- 4 x M6 Coach Screws
- 1 x Security Screw
- 1 x 2mm Allen Key
- 4 x Nylon Anchor
- 4 x (M4 x 10mm) Screw
- 4 x (M4 x 12mm) Screw
- 4 x (M4 x 16mm) Screw
Additional Information:
- Simple tension adjustment
- The display position can be locked
- Quick release mechanism for fast display attachment/removal with security feature
- 360 Degree rotation
- Ball joint allows infinite display adjustment for any viewing angle up to 20 degrees in any direction simple tension adjustment
- Distance from wall 3" (77mm)
- Quick release mechanism for fast display attachment or removal with security feature
Compatibility:
- LCD
- LED
- Monitor
Assembly Required:
- Yes
Warranty
Standard Warranty:
10 Year
Additional Warranty Information:
Parts and Workmanship
