LINKSYS Cisco TelePresence 1000 MXP Video Conference Equipment - CCD - 1280 x 1024 Video - 4 x Network (RJ-45) - ISDN - Fast Ethernet

CTS-MXP-1000N=

This product has been discontinued by the manufacturer

Please visit

LINKSYS Video & Web Conference Equipment

for alternative options.

Description

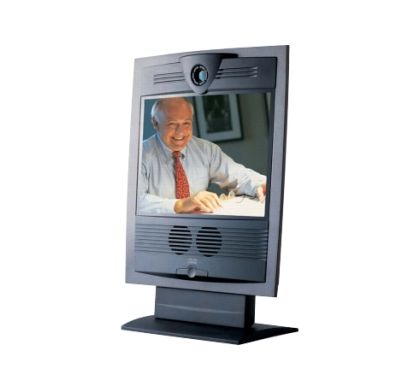

Talk and collaborate face-to-face from your desktop at a moment´s notice with a stylish, fully integrated personal telepresence system. The Cisco TelePresence System 1000 MXP with Multiway technology instantly integrates multi-party video calls. This system is ideal for offices and small meeting rooms and includes a camera, a 12.1-inch LCD screen, speakers, cables, and a microphone. It has an ultra-thin portable frame and can be wall-mounted.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
TelePresence
Product Series:
MXP
Product Model:
1000 MXP
Product Name:
TelePresence 1000 MXP Video Conference Equipment
Product Type:
Video Conference Equipment

Technical Information

ITU-T Recommendation:
H.323
Video Bridging:
Multipoint

Camera

Image Sensor Size:
1/4
Image Sensor Type:
CCD

Video

Graphics Modes:
SXGA
Video System:
  • NTSC
Maximum Video Resolution:
1280 x 1024
Maximum Frame Rate:
30 fps
Video Encoding:
  • H.264
  • H.261
  • H.263
  • H.263+
  • H.239

Audio

Microphone Form Factor:
Internal
Audio Encoding:
  • G.711
  • G.722
  • G.722.1
  • G.728

Network & Communication

Carrier Supported:
  • ISDN
Ethernet Technology:
  • Fast Ethernet

Wireless Specifications

Wi-Fi:
Yes

Interfaces/Ports

DVI In:
Yes
Network (RJ-45):
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
4
Number of DVI In:
1

Physical Characteristics

Height:
450.0 mm
Width:
300.0 mm
Depth:
66.0 mm
Weight (Approximate):
4.08 kg

Miscellaneous

Additional Information:
  • Non encrypted version
    • Audio Features:
  • CD-quality 20-kHz mono
  • Automatic noise reduction
  • Acoustic echo canceller
  • Automatic gain control
  • Packet-loss management
  • Active lip synchronization
  • Global System for Mobile Communications (GSM) interference audio feature
  • Assistive Listening Devices (ALD) support with acoustic echo cancellation
    • Security Features:
  • Management through HTTPS and SSH
  • IP administration password
  • Menu administration password
  • Dialing access code
  • Streaming password
  • H.243 Multipoint Control Unit (MCU) Password
  • Virtual Network Computing (VNC) Password
  • SNMP security alerts
  • Disable IP services
  • Message Digest Algorithm 5 (MD-5) Challenge
  • Network settings protection
  • SIP authentication through NT LAN Manager (NTLM)
  • SIP authentication through digest
  • Federal Information Processing Standards (FIPS) mode
