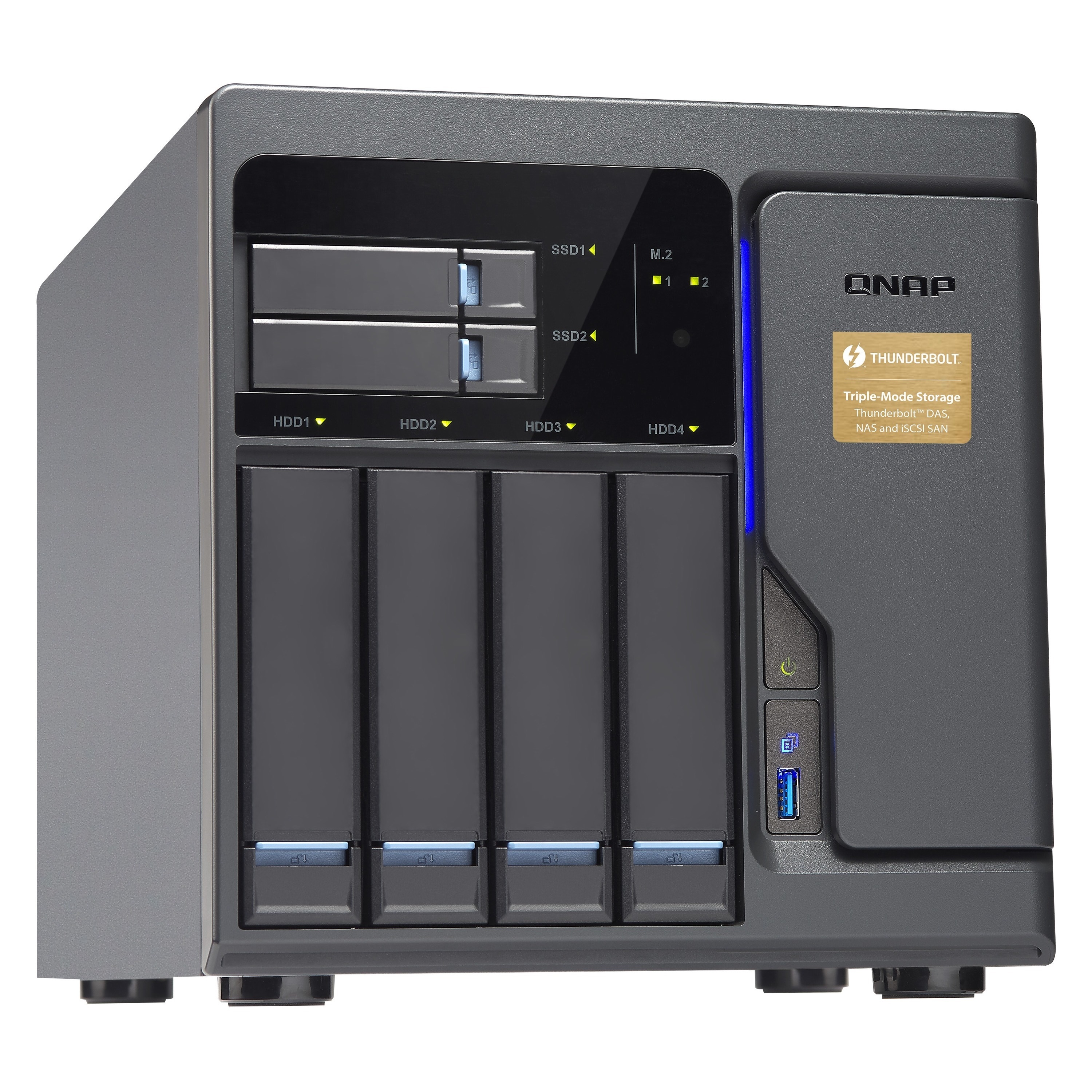

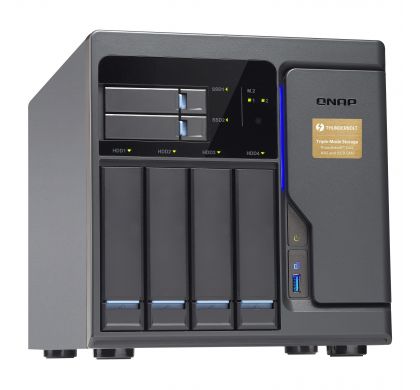

QNAP TVS-682T-I3-8G Turbo vNAS Thunderbolt 2, 6x Total Bays, i3, 8GB, SAN/NAS Server - Tower

QNAP Turbo vNAS TVS-682T-I3-8G 6 x Total Bays SAN/NAS Server - Tower
Retail price: $2,935.00
$2,650.00
(Includes GST) You save: $285.00 (10%) Save 10%
TVS-682T-I3-8G
Please Call
+
Add to favourites

Description

The TVS-682T features advanced hardware by adopting 6th Generation Intel® 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution. Providing a Thunderbolt DAS/NAS/iSCSI SAN triple solution, the TVS-682T delivers the incredible power of Thunderbolt™ 2 to double the speed potential to 20 Gbps, supports smooth 4K 60 fps video transfer and display, and is a perfect match for Thunderbolt-equipped Mac* users for 4K workflows, file storage and high-speed sharing. Incorporating reliability, security and rich applications, the TVS-682T delivers the highest transfer rates ever as storage with persistent throughput, and provides a complete business-ready storage solution.

  • Built-in M.2 SATA 6Gb/s slots & 2.5" SSD slots
  • Qtier technology and SSD cache enable 24/7 optimized storage efficiency
  • The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
  • Triple HDMI output (including one HDMI 2.0) for smooth 4K video playback
  • Thunderbolt™ 2 (20Gbps) and 10GbE dual network for on-the-fly video editing and speedy sharing
  • 4 available combinations with Mac/PC and JBOD for flexible attaching, sharing and expansion
  • Scalable up to 416 TB with the Thunderbolt™ 2 storage expansion enclosures TX-800P/ TX-500P
  • Virtual JBOD (VJBOD) allows to use QNAP NAS to expand the TVS-682T's storage capacity
  • Supports QRM+ unified remote server management, QvPC technology, virtual machine and container applications, and storage for virtualization
Thunderbolt™ 2 NAS, extraordinary performance

The TVS-682T is powered by a high-performance Intel® Core™ i3 dual-core processor and 8GB DDR4 RAM, driving outstanding system performance for CPU-demanding applications. Offering a comprehensive DAS/NAS/iSCSI SAN multi-mode storage solution in a compact form factor, the TVS-682T not only features Thunderbolt™ 2 technology but also has dual 10GbE ports giving you incredible flexibility for network connectivity.

Advanced hardware for greater efficiency

High-performance hardware, well-designed application functionalities and thoroughly-planned usage scenarios are three distinctive cornerstones for achieving optimum performance.

M.2 SATA 6Gb/s SSD & 2.5" SSD cache

The TVS-682T provides 2 SSD slots dedicated for caching to increase IOPS performance, and provides higher transfer speeds and reliability with the compact, energy-efficient M.2 SSD. Using an SSD cache boosts overall system performance, and is perfect for improving overall workflow of random IOPS demanding applications such as virtualization. The TVS-682T combines M.2 SSD, 2.5" SSD and HDD in one box to effectively realize tiered storage for exceptional application performance and lower TCO of storage at the same time.

Perfect storage trio: tiered storage, application-based partitioning & network traffic distribution

The advanced hardware design of TVS-682T can facilitate optimized storage deployment based on different usage scenarios.

Specifications

General Information

Manufacturer:
QNAP Systems
Manufacturer Website Address:
http://www.qnap.com
Brand Name:
QNAP
Product Family:
Turbo vNAS
Product Model:
TVS-682T-I3-8G
Product Name:
Turbo NAS TVS-682T-I3-8G SAN/NAS Server with Thunderbolt 2
Product Type:
SAN/NAS Server

Storage

Number of Hard Drives Installed:
No

Processor & Chipset

Processor Manufacturer:
Intel
Processor Type:
Core i3
Processor Model:
i3-6100
Processor Core:
Dual-core (2 Core)
Processor Speed:
3.70 GHz

Memory

Standard Memory:
  • 8 GB
Memory Technology:
DDR4 SDRAM

Network & Communication

Ethernet Technology:
  • 10 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays:
6
Number of External 5.25" Bays:
No
Number of 2.5" Bays:
2
Number of 2.5"/3.5" Bays:
4
Number of Total Expansion Slots:
2

Controllers

Controller Type:
  • Serial ATA/600
RAID Supported:
Yes
RAID Levels:
  • 0, 1, 5, 6, 10, Hot Spare, JBOD

Interfaces/Ports

HDMI:
Yes
Total Number of USB Ports:
5
Number of USB 3.0 Ports:
5
Network (RJ-45):
Yes

Software

Operating System:
QTS 4.2

Management & Protocols

Protocols:
  • DNS
  • Telnet
  • DLNA
  • IPv6
  • FTPS
  • RSync
  • WEBDAV
  • SSL/TLS
  • AFP
  • CIFS
  • Bonjour
  • HTTPS
  • FTP
  • NFSv3
  • SMSC
  • SSH
  • DHCP
  • SMB
  • SMTP
  • FXP
  • SFTP
  • AFP 3.3
  • LDAP
  • iSCSI
  • TFTP
  • IPv4
  • UPnP
  • TCP/IP
  • PPTP
  • HTTP
  • DDNS
  • CIFS/SMB
  • SNMP

Physical Characteristics

Height:
231.9 mm
Width:
224.9 mm
Depth:
319.8 mm
Form Factor:
Tower
Weight (Approximate):
7.70 kg
