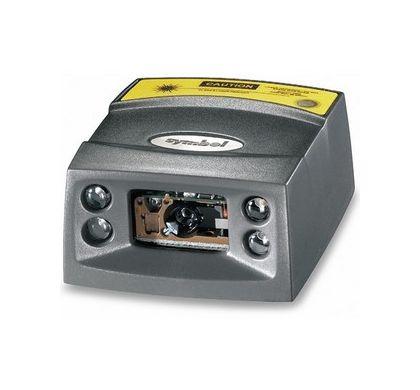

MOTOROLA Symbol MS4407 Fixed Mount Barcode Scanner
This product has been discontinued by the manufacturer
Please visit
MOTOROLA Barcode Scannersfor alternative options.
Description
Wherever a small footprint is required, the Symbol MS4400 delivers. One of the smallest CCD imaging products available today, this scanner excels at 1D and 2D bar code scanning, image capture and DPM reading. Attaining a new level of miniaturization, it can be used from the check-in kiosk to point-of-sale areas with limited counter space or even integrated within clinical diagnostic equipment.
Specifications
General Information
Manufacturer:
Motorola, Inc
Manufacturer Website Address:
www.motorola.com
Brand Name:
Motorola
Product Family:
Symbol
Product Model:
MS4407
Product Name:
Symbol MS4407 Bar Code Reader
Product Type:
Fixed Mount Barcode Scanner
Technical Information
Connectivity Technology:
- Cable
Bar Code Dimension:
- 1D
- 2D
Bar Code Symbology Supported:All major 1D bar codes 2-D: MaxiCode PDF417 DataMatrix QR Code Aztec & Composite Codes Postal Codes: US Postnet US Planet UK Postal Australian Postal Japan Postal
Light Source:
- LED
Image Sensor:
CCD
Depth of Field:
- 68.58 mm - 140 mm@0.13 mm - Code 39 - 80% MRD
- 76 mm - 133 mm@0.17 mm - PDF417 - 80% MRD
- 56 mm - 152 mm@0.19 mm - Code 39 - 80% MRD
- 76 mm - 152 mm@0.25 mm - PDF417 - 80% MRD
- 51 mm - 178 mm@0.33 mm - UPC-A - 80% MRD
- 178 mm@0.38 mm - PDF417 - 80% MRD
- 241 mm@0.51 mm - Code 39 - 80% MRD
Scan Pattern:
Omni-directional
Scanning Distance:
229 mm
Interfaces/Ports
Host Interface:
- Serial
- USB
Physical Characteristics
Height:
25.0 mm
Width:
48.5 mm
Depth:
55.4 mm
Weight (Approximate):
51.0 g
Miscellaneous
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- China RoHS
