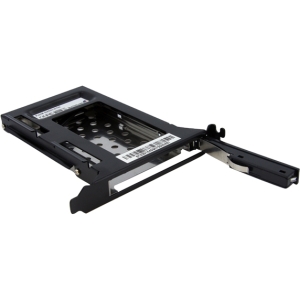

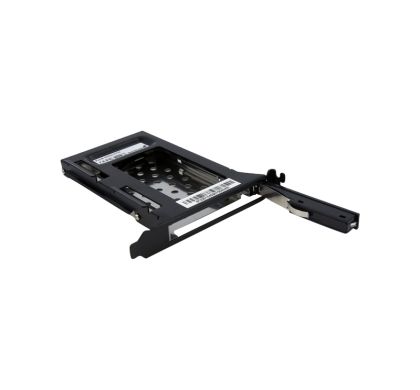

STARTECH S25SLOTR Drive Enclosure Internal - Black
Description
Use an available expansion card slot to install a hot swappable 2.5in hard drive. The S25SLOTR Trayless Hard Drive Rack can be installed into an available (full profile) PCI expansion card slot, providing easy access to a bare 2.5" SATA hard drive or solid state drive (SSD) from the rear panel of a computer case.
Unlike conventional hard drive enclosures, the S25SLOTR hard drive rack doesn't require that a drive be installed in a drive tray, saving the time and hassle involved in having to mount or install the hard drive for access to drive contents.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with compatible controller.
Once installed in a PCI slot (and accompanying rear panel bracket), installing a 2.5" SATA HDD is as simple as inserting it into the trayless rack. To remove the hard drive, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive.
This unique design of the mobile rack enables you to use any available full profile expansion slot to mount a removable 2.5in SATA hard drive.
Unlike conventional hard drive enclosures, the S25SLOTR hard drive rack doesn't require that a drive be installed in a drive tray, saving the time and hassle involved in having to mount or install the hard drive for access to drive contents.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with compatible controller.
Once installed in a PCI slot (and accompanying rear panel bracket), installing a 2.5" SATA HDD is as simple as inserting it into the trayless rack. To remove the hard drive, simply hit the eject button to unlock the access door, allowing the drive to be pulled out of the computer without having to dismount the drive.
This unique design of the mobile rack enables you to use any available full profile expansion slot to mount a removable 2.5in SATA hard drive.
Specifications
General Information
Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Model:
S25SLOTR
Product Name:
2.5in SATA Removable HDD Bay for PC Slot
Product Type:
Drive Enclosure
Controllers
Controller Type:
- Serial ATA/600
I/O Expansions
Number of Total Expansion Bays:
1
Number of 2.5" Bays:
1
Interfaces/Ports
Drive Interface:
Serial ATA/600
Physical Characteristics
Colour:
- Black
Material:
- Aluminium
- Steel
Form Factor:
Internal
Height:
119.9 mm
Width:
21.1 mm
Depth:
145 mm
Miscellaneous
Additional Information:
- Utilize a free expansion card slot to add a removable 2.5" SATA hard drive bay
- Vented aluminum/steel design and a 50,000+ insertion rating ensures reliability of the drive and drive rack
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Certifications & Standards:
- CE
- FCC
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
Warranty
Standard Warranty:
2 Year
