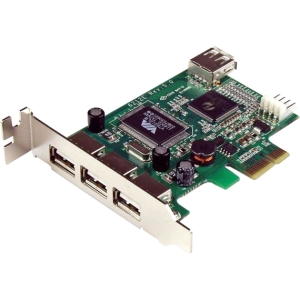

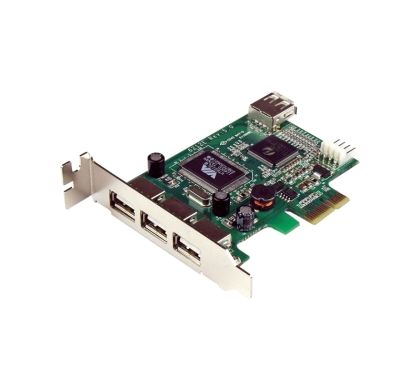

STARTECH USB Adapter - PCI Express - Plug-in Card
Description
The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance. Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation. Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.
Specifications
General Information
Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
4-port PCI Express LP USB Adapter Card
Product Type:
USB Adapter
Technical Information
Host Interface:
- PCI Express
Interfaces/Ports
Total Number of USB Ports:
4
Number of USB 2.0 Ports:
4
Physical Characteristics
Form Factor:
Plug-in Card
Height:
80 mm
Width:
89.9 mm
Thickness:
20.1 mm
Weight (Approximate):
45.9 g
Miscellaneous
Package Contents:
- 4-port USB Adapter Card
- WHQL Certified Drivers
- Standard Profile Bracket
Additional Information:
- Add 4 USB 2.0 ports to a low profile/small form factor (SFF) computer system, to conserve expansion port availability
- Dedicated power input ensures each port receives the full amount of power capable under USB 2.0 specification
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Platform Supported:
- PC
- Mac
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
Warranty
Standard Warranty:
2 Year
