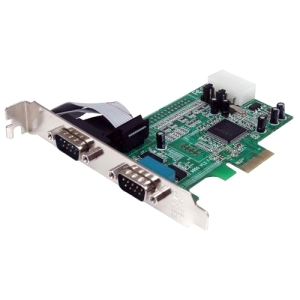

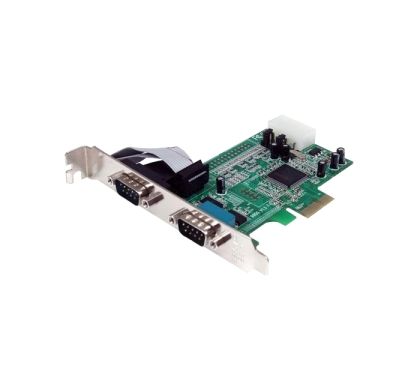

STARTECH PEX2S553 Serial Adapter

Retail price: $98.99
$98.00
(Includes GST) You save: $0.99 (1%) Save 1%
PEX2S553
Available
+
Add to favourites

Description

Add 2 RS-232 serial ports to your standard or small form factor computer through a PCI Express expansion slot. The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards.

The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows 2000/XP/2003/Vista/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4 and above. Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.

Specifications

General Information

Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Model:
PEX2S553
Product Name:
2 Port PCIe Serial Adapter Card with 16550
Product Type:
Serial Adapter

Technical Information

Host Interface:
  • PCI Express
Data Transfer Rate:
  • 460.80 kbit/s
UART Type:
16550
Platform Supported:
  • PC

Physical Characteristics

Form Factor:
Plug-in Card
Card Height:
Dual-profile

Miscellaneous

Package Contents:
  • 2 Port PCIe Serial Adapter Card with 16550
  • Standard and Low profile/half-height Bracket
Additional Information:
  • Native single-chip, single lane PCI Express chipset delivers true PCIe performance.
  • Standard and low profile/half-height bracket included to ensure fitment in any system.
  • Easy to install and use with full step-by-step instructions saving time and hassle.
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
2 Year
