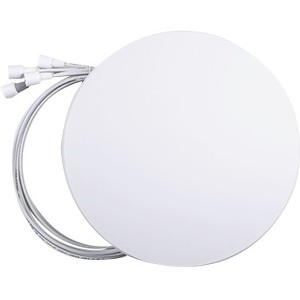

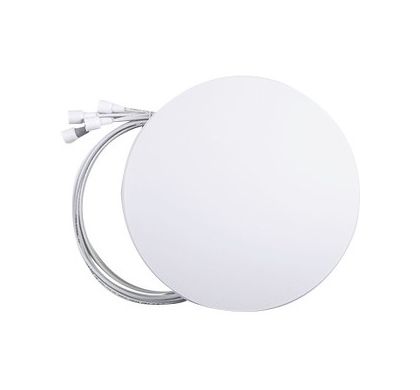

CISCO Meraki Antenna for Indoor, Wireless Access Point
Description
The Panel Omni antenna is ideal for low ceiling aesthetic consensus installations where wall penetration or extended reach are important. Some example uses are low-density deployments like schools and hotels to provide basic low-performance connectivity. These types of best-effort deployments usually have APs installed in the hallway to cover adjacent rooms.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Meraki
Product Name:
Panel Omni
Product Type:
Antenna
Technical Information
Directivity:
Omni-directional
Frequency:
- 2.40 GHz to 2.50 GHz
- 5.15 GHz to 5.88 GHz
Antenna Gain:
- 4.9 dBi
Interfaces/Ports
Connector Type:
RP-TNC
Physical Characteristics
Height:
35 mm
Diameter:
300 mm
Form Factor:
Wall/Ceiling/Pole
Weight (Approximate):
1.05 kg
Miscellaneous
Application/Usage:
- Indoor
- Wireless Access Point
Compatibility:
Cisco Meraki MR53E Access Point
