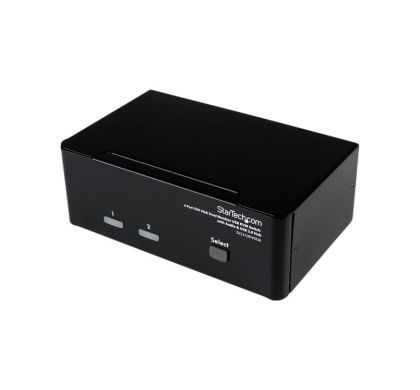

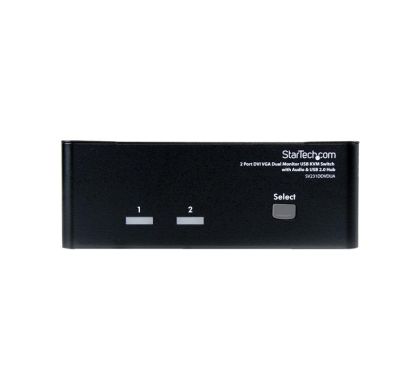

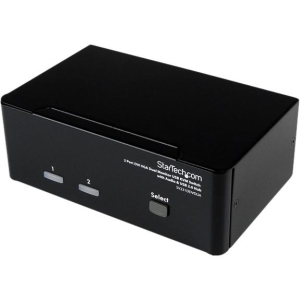

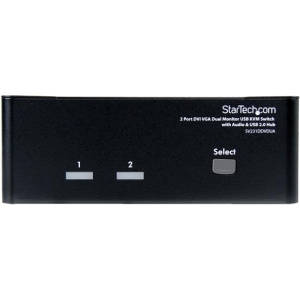

STARTECH SV231DDVDUA KVM Switchbox

Retail price: $521.39
$516.25
(Includes GST) You save: $5.14 (1%) Save 1%
SV231DDVDUA
Available
+
Add to favourites

Description

The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.

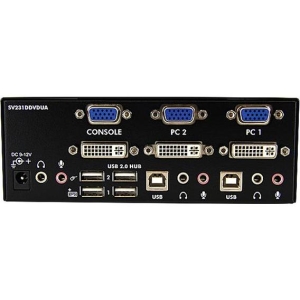

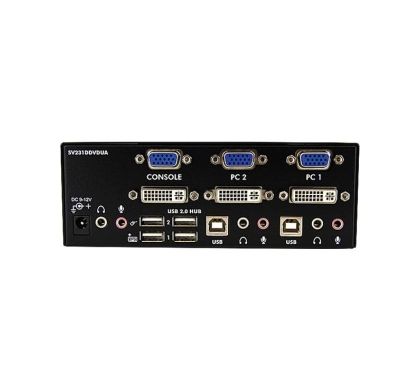

With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.

Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.

Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.

Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact our technical support team for assistance identifying your source.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Specifications

General Information

Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Model:
SV231DDVDUA
Product Name:
2 Port DVI VGA Dual Monitor KVM Switch with Audio & USB Hub
Product Type:
KVM Switchbox

Technical Information

Number of Computers Supported:
2

Video

Graphic Mode:
  • WUXGA
Maximum Video Resolution:
1920 x 1440

Interfaces/Ports

USB:
Yes
DVI:
Yes
Number of USB Ports:
6
Number of DVI Ports:
3

Power Description

Input Voltage:
  • 110 V AC

Physical Characteristics

Height:
57 mm
Width:
160 mm
Depth:
100 mm
Weight (Approximate):
750 g

Miscellaneous

Additional Information:
  • High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration.
  • Integrated USB 2.0 hub and Mic/Audio switching allows the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices.
  • Absolutely no software or drivers required providing a completely OS independent KVM solution.
Green Compliant:
Yes
