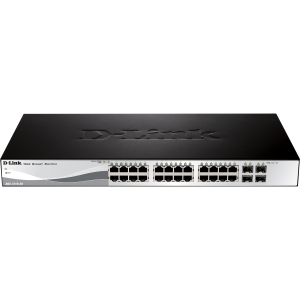

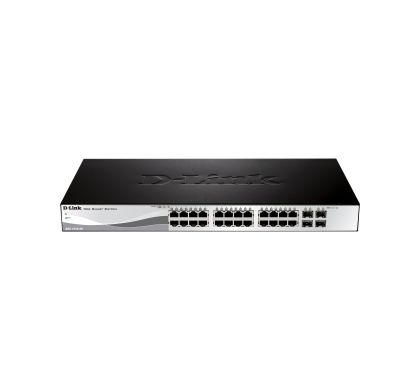

D-LINK WebSmart DGS-1210-28 24 Ports Manageable Ethernet Switch

DGS-1210-28
Available
Please contact us for pricing

Description

The D-Link DGS-1210 Series is the latest generation of Web Smart switches to feature D-Link Green technology. Equipped with 10, 16, 24, or 48 10/100/1000Mbps ports and two or four combo 10/100/1000BASE-T/SFP ports, the series integrates advanced management and security functions that provide performance and scalability. Additionally, the 10/100/1000Mbps ports on the DGS-1210-10P are PoE enabled, offering ease-of-use and green features such as PoE scheduling, which allows for the power to be shut off at a pre-determined time. Management options for the DGS-1210 Series switches include SNMP, Web Management, SmartConsole Utility, and Compact Command Lines. The series also supports ACL filtering and the D-Link Safeguard Engine. The DGS-1210 Series uses Auto Voice VLAN, ensuring higher priority for voice traffic. The DGS-1210-10P comes with a fanless design in a compact 13-inch desktop enclosure; the DGS-1210-16 and DGS-1210-24 come in a fanless design with a 19-inch metal case. The DGS-1210-48 is equipped with two smart fans; these fans are set to low speed by default and will automatically switch to high speed once the temperature threshold has been reached. A fanless design allows for quieter operation and guarantees an extended lifetime, while smart fans help to considerably save power.

Specifications

General Information

Manufacturer:
D-Link Systems, Inc
Manufacturer Website Address:
http://www.dlink.com.au
Brand Name:
D-Link
Product Family:
WebSmart
Product Series:
DGS-1210
Product Model:
DGS-1210-28
Product Name:
WebSmart DGS-1210-28 Ethernet Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:
24
Token Ring Port:
No
LRE Port:
No
Bypass:
No
Modular:
No
Number of Network (RJ-45) Ports:
24

Media & Performance

Media Type Supported:
  • Twisted Pair
Ethernet Technology:
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T

I/O Expansions

Number of Total Expansion Slots:
4
Number of SFP Slots:
4

Network & Communication

Layer Supported:
2

Management & Protocols

Manageable:
Yes
Management:
    • Web-Based Management
    • Command Line Interface
    • SNMP
    • RMON
    • Syslog
    • Telnet
    • VLAN
    • QoS
    • MIB

Memory

Standard Memory:
  • 128 MB
Memory Technology:
DDR2 SDRAM
Flash Memory:
16 MB

Power Description

PoE Port:
No
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • Power Supply
Redundant Power Supply:
No

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Desktop

Miscellaneous

Certifications & Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3at
  • IEEE 802.3x
  • IEEE 802.3z
  • IEEE 802.1w
  • IEEE 802.1D
  • IEEE 802.3ad
  • IEEE 802.1p
  • FCC class A
  • CE Class A
  • VCCI Class A
  • IC Class A
  • cUL
  • LVD
  • CE
