CISCO IE-2000-4S-TS-G-B Manageable Ethernet Switch

CISCO IE-2000-4S-TS-G-B Manageable Ethernet Switch
IE-2000-4S-TS-G-B
Please Call
Please contact us for pricing

Description

Product Overview

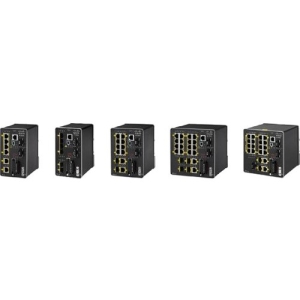

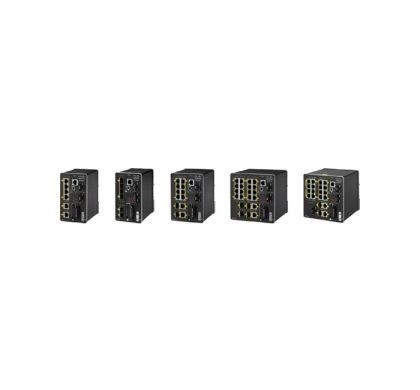

The Cisco® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, ruggedized access switches that handle security, voice, and video traffic across industrial networks. They provide customers in industries such as automotive, oil and gas, mining, transportation, and energy with highly secure access and industry-leading convergence using Cisco Resilient Ethernet Protocol (REP).

Product Details

The Cisco IE 2000 Series are designed for low cost, low ports, and small sizes. They offer:

  • Four, eight, or 16 10/100Base-T Ethernet ports (Small Form-Factor Pluggable [SFP] downlinks on selected models); fixed configurations with a compact form factor
  • Two gigabit combo ports: SFP (100 Mbps and 1 Gbps) or RJ45 uplink
  • Dual-input DC power supply, alarm relays, DIN rail mount
  • Industrial Power over Ethernet (PoE) solution
  • Conformal coating available
  • Swappable SD flash card and mini-USB connector
  • Industrial environmental compliance and certifications
  • Industrial partner applications: Ethernet/IP and PROFINET

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
IE-2000
Product Model:
IE-2000-4S-TS-G-B
Product Name:
IE 2000 with 4-port SFP, 2-port GE SFP Uplinks, LAN Base ima
Product Type:
Ethernet Switch

Interfaces/Ports

Token Ring Port:
No
LRE Port:
No
Uplink Port:
No
Bypass:
No
Modular:
No
Management Port:
No
USB:
Yes
Stack Port:
No
Port/Expansion Slot Details:
  • 2 x Gigabit Ethernet Uplink
  • 4 x Fast Ethernet Uplink

Media & Performance

Ethernet Technology:
  • Gigabit Ethernet
  • Fast Ethernet
Network Technology:
  • 1000Base-T
  • 100Base-X

I/O Expansions

Number of Total Expansion Slots:
6
Expansion Slot Type:
  • SFP
Shared SFP Slot:
No
Number of SFP Slots:
6

Network & Communication

Layer Supported:
2

Management & Protocols

Manageable:
Yes
Management:
    • Telnet
    • Web-Based Management
    • MIB
    • DHCP
    • SNMP v1/v2c/v3
    • RMON
    • QoS
    • VLAN
    • Syslog

Memory

Standard Memory:
  • 256 MB
Memory Technology:
DRAM
Flash Memory:
64 MB

Reliability

MTBF:
374052 Hour

Power Description

PoE Port:
No
Input Voltage:
  • 220 V DC
  • 110 V DC
Power Source:
  • Power Supply
Redundant Power Supply:
Yes

Physical Characteristics

Form Factor:
  • Desktop
  • Rail-mountable
Height:
129.5 mm
Width:
80 mm
Depth:
114.6 mm
Weight (Approximate):
1.22 kg
