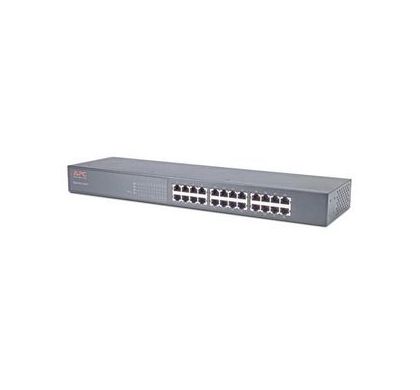

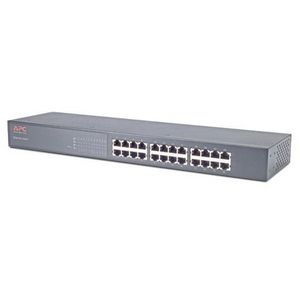

APC AP9224110 24 Ports Ethernet Switch
Description
This APC Ethernet Switch provides multi-port that can be used to create highspeed backbone connections among switches, servers, databases, and end stations. This switch fit into any enterprise-level network as an exit to the backbone switch.
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Model:
AP9224110
Product Name:
24-Port 10/100 Switch
Product Type:
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:
24
Number of Network (RJ-45) Ports:
24
Port/Expansion Slot Details:
24 x Fast Ethernet Network
Media & Performance
Media Type Supported:
- Twisted Pair
Twisted Pair Cable Standard:
- Category 5
Ethernet Technology:
- Fast Ethernet
Network Technology:
- 10Base-T
- 10/100Base-TX
Network & Communication
Layer Supported:
2
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
Physical Characteristics
Form Factor:
- Desktop
- Rack-mountable
Weight (Approximate):
1.18 kg
Miscellaneous
Package Contents:
- One APC Ethernet Switch
- Power cord
- Four rubber feet
- Rack mount kit
- User's Guide
Additional Information:
- Access Method: CSMA/CD
- Input Connection Type: IEC-320 C14
Certifications & Standards:
- EIA/TIA 568
- IEEE 802.1p CoS
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX
- IEEE 802.3x Flow control
- cUL
- UL
- 60950
- EN60950
- TÃœV
- FCC part 15
- EN55022
- VCCI Class A
- EN55024
- EN 61000-3-2
- EN 61000-3-3
Warranty
Standard Warranty:
2 Year
