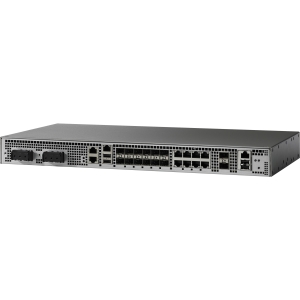

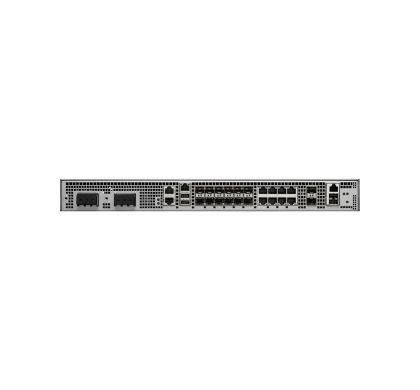

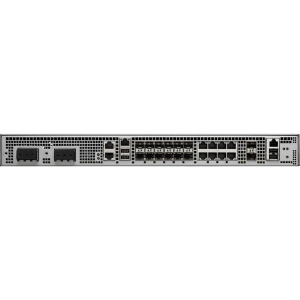

LINKSYS Cisco ASR-920-4SZ-A Router - 1U

LINKSYS Cisco ASR-920-4SZ-A Router - 1U
ASR-920-4SZ-A
Please Call
Please contact us for pricing

Description

Cisco® ASR 920 Series Aggregation Services Routers are full-featured converged access platforms designed for the cost-effective delivery of wireline and wireless services. They are temperature hardened, high-throughput, small form factor, low-power-consumption routers optimized for mobile backhaul, residential, and business service applications. The Cisco ASR 920 Router provides a comprehensive and scalable feature set of Layer 2 VPN (L2VPN) and Layer 3 VPN (L3VPN) services in a compact package. It also enables service providers to deploy Multiprotocol Label Switching (MPLS)-based VPN services from within the access layer. Designed around key Carrier Ethernet features that simplify network operation, the Cisco ASR 920 Series enables premium services with enhanced service-level agreement (SLA) capabilities. An optional "pay-as-you-grow" feature and service activation model gives service providers a flexible, cost-effective solution.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
ASR 920
Product Model:
ASR-920-4SZ-A
Product Name:
ASR-920-4SZ-A Router
Product Type:
Router

Interfaces/Ports

Total Number of Ports:
2
USB:
Yes
Powerline:
No
Management Port:
Yes
Token Ring Port:
No
Serial V.35 Interface:
No
Number of Network (RJ-45) Ports:
2

I/O Expansions

Number of Total Expansion Slots:
8
Expansion Slot Type:
  • SFP
  • SFP+

Network & Communication

Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X
  • 10GBase-X
Ethernet Technology:
  • 10 Gigabit Ethernet

Management & Protocols

Security Features:
    • ACL
    • L2VPN
    • L3VPN

Memory

Standard Memory:
  • 4 GB
Memory Technology:
DRAM
Flash Memory:
2 GB

Power Description

PoE Port:
No
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source:
  • Power Supply
Redundant Power Supply:
Yes

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
43.2 mm
Width:
393.7 mm
Depth:
231.1 mm
Weight (Approximate):
3.40 kg

Miscellaneous

Certifications & Standards:
  • IEEE1588-2008
Safety:
  • UL 60950-1, 2nd edition
  • CAN/CSA C22.2 No. 60950-1-07 2nd edition
  • IEC 60950-1, 2nd edition
  • EN 60950-1, 2nd edition
  • AS/NZS 60950.1:2003
EMC:
  • FCC CFR47 Part 15 Class A
  • EN55022, class A
  • CISPR22, class A
  • ICES-003, class A
  • EN 300 386, class A
  • VCCI, class A
  • KN22, class A
  • EN61000-3-2 to EN61000-3-3
Immunity Compliance:
  • EN 300 386
  • EN 61000-6-1
  • EN 50082-1
  • CISPR24
  • EN 55024
  • KN 24
  • EN 50121-4
  • EN/KN 61000-4-2 to EN/KN 61000-4-6
  • EN/KN 61000-4-8
  • EN/KN 61000-4-11
NEBS:
  • GR-63-CORE Issue 4
  • GR-1089-CORE Issue 6
  • SR-3580 NEBS Level 4
ETSI:
  • ETS/EN 300 119 Part 4
  • ETS/EN 300 019
  • ETS/EN 300 753

Warranty

Standard Warranty:
90 Day
