STARTECH SFP (mini-GBIC)
Description

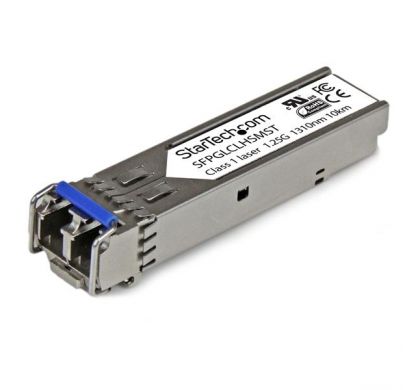

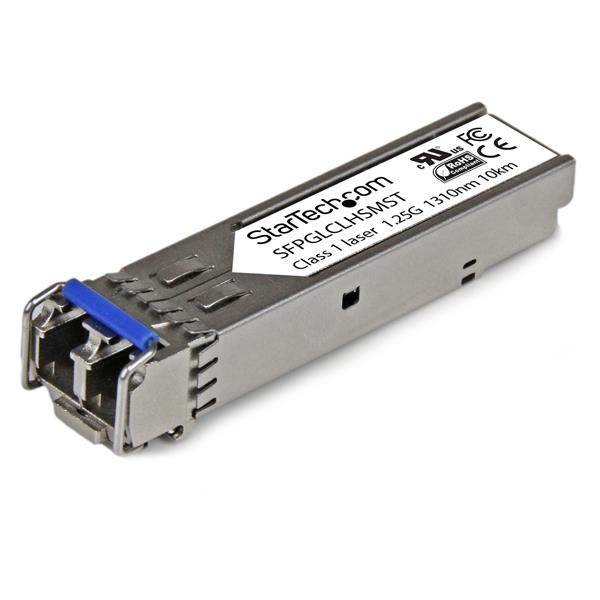

Add, replace or upgrade SFP modules on Gigabit fiber equipment. The SFPGLCLHSMST Cisco Compatible Gigabit Fiber SFP Transceiver Module SM/MM LC is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade an SFP slot on your Gigabit fiber networking equipment or fiber media converter.
Supporting a 1000Base-LX/LH network with data rates up to 1.25 Gbps, this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. The SFP transceiver supports both single-mode and multi-mode LC ports, with a single-mode distance of 10 km (6.2 mi.) and multi-mode distance of 1.5 km (.9 mi.). Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 1300nm single-mode/multi-mode SFP module is compatible with the Cisco GLC-LH-SM transceiver. Also a perfect accessory for the StarTech.com PEX1000SFP" text="PCI Express Open SFP NIC (PEX1000SFP), or ET1110PSE" text="Gigabit POE Open SFP Media Converter (ET1110PSE) products.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Supporting a 1000Base-LX/LH network with data rates up to 1.25 Gbps, this LC SFP/Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. The SFP transceiver supports both single-mode and multi-mode LC ports, with a single-mode distance of 10 km (6.2 mi.) and multi-mode distance of 1.5 km (.9 mi.). Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 1300nm single-mode/multi-mode SFP module is compatible with the Cisco GLC-LH-SM transceiver. Also a perfect accessory for the StarTech.com PEX1000SFP" text="PCI Express Open SFP NIC (PEX1000SFP), or ET1110PSE" text="Gigabit POE Open SFP Media Converter (ET1110PSE) products.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Specifications
General Information
Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Name:
Cisco Compatible Gigabit Fiber SFP Transceiver Module SM LC - 10 km (Mini-GBIC)
Product Type:
SFP (mini-GBIC)
Technical Information
Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
Interfaces/Ports Details:
- 1 x LC Female 1000Base-LH Network
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Mode Supported:
Single-mode
Ethernet Technology:
Gigabit Ethernet
Network Technology:
1000Base-LH
Maximum Data Transfer Rate:
1.25
Physical Characteristics
Form Factor:
Hot-pluggable
Height:
10 mm
Width:
12 mm
Depth:
60 mm
Weight (Approximate):
17 g
Miscellaneous
Compatibility:
MSA Compliant
Green Compliant:
Yes
