D-LINK SFP - 1 x 1000Base-T
Description

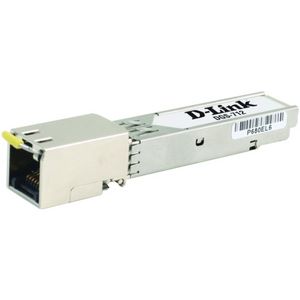

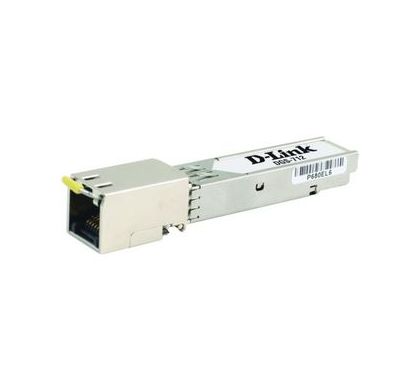

The D-Link DGS-712 1000BASE-T Copper Small Form Pluggable (SFP) transceiver is based on the SFP Multi Source Agreement (MSA). It is compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3z and IEEE Std 802.3ab. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.
Specifications
General Information
Manufacturer:
D-Link Systems, Inc
Manufacturer Website Address:
http://www.dlink.com.au
Brand Name:
D-Link
Product Name:
1000BASE-T Copper SFP Transceiver
Product Type:
SFP
Technical Information
Application/Usage:
- Data Networking
Interfaces/Ports
Interfaces/Ports:
- 1 x 1000Base-T
Interfaces/Ports Details:
- 1 x RJ-45 1000Base-T Auto MDI/MDI-X
Media & Performance
Connectivity Media:
- Category 5 Twisted Pair
Distance Supported:
- 100 m Category 5 Twisted Pair
Data Transfer Rate:
- 1 Gbps Gigabit Ethernet
Environmental Conditions
Temperature:
- 0°C to 85°C Operating
- -40°C to 85°C Storage
Physical Characteristics
Form Factor:
Hot-pluggable
Miscellaneous
Additional Information:
- 10/100/1000 BASE-T operation in host systems with SGMII interface
- Up to 1.25Gb/s bi-directional data links
- Extended case temperature range
- Fully metallic enclosure for low EMI
- Low power dissipation (typical 1.2 watts)
- +3.3V electrical power interface
Compatibility:
D-Link Gigabit switch or optional switch module
