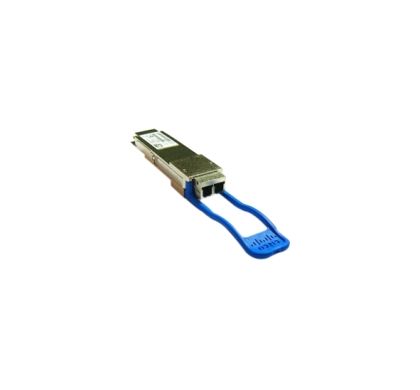

CISCO QSFP-40G-CSR4 QSFP+ - 1 x 40GBase-CSR4
Description
The Cisco 40GBASE-CSR4 QSFP+ Module is similar to the 40GBASE-SR4 interface extends supported link lengths to 300m and 400m respectively on laser-optimized OM3 and OM4 multimode fiber cables. Each 10-gigabit lane of this module is compliant to IEEE 10GBASE-SR specifications. This module can be used for native 40G optical links over 12-fiber ribbon cables with MPO/MTP connectors, or in 4x10G mode with ribbon to duplex fiber breakout cables for connectivity to four 10GBASE-SR interfaces. Maximum channel insertion loss allowed is respectively 2.6dB over 300m of OM3 cable or 2.9dB over 400m of OM4 cable.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Model:
QSFP-40G-CSR4
Product Name:
40GBASE-CSR4 QSFP+ Module for MMF
Product Type:
QSFP+
Technical Information
Application/Usage:
- Optical Network
- Data Networking
Interfaces/Ports
Interfaces/Ports:
- 1 x 40GBase-CSR4
Interfaces/Ports Details:
- 1 x MTP 40GBase-CSR4 Network
Media & Performance
Connectivity Media:
- 62.5 µm, 50 µm Multi-mode Optical Fiber 40GBase-CSR4
Data Transfer Rate:
- 40 Gbps 40 Gigabit Ethernet
Physical Characteristics
Dimensions:
13.5 mm Height x 18.4 mm Width x 72.4 mm Depth
Miscellaneous
Compatibility:
Cisco Nexus 3000 Series Switches
