CISCO PVDM
Description

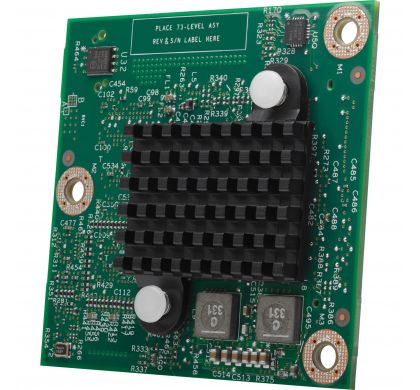

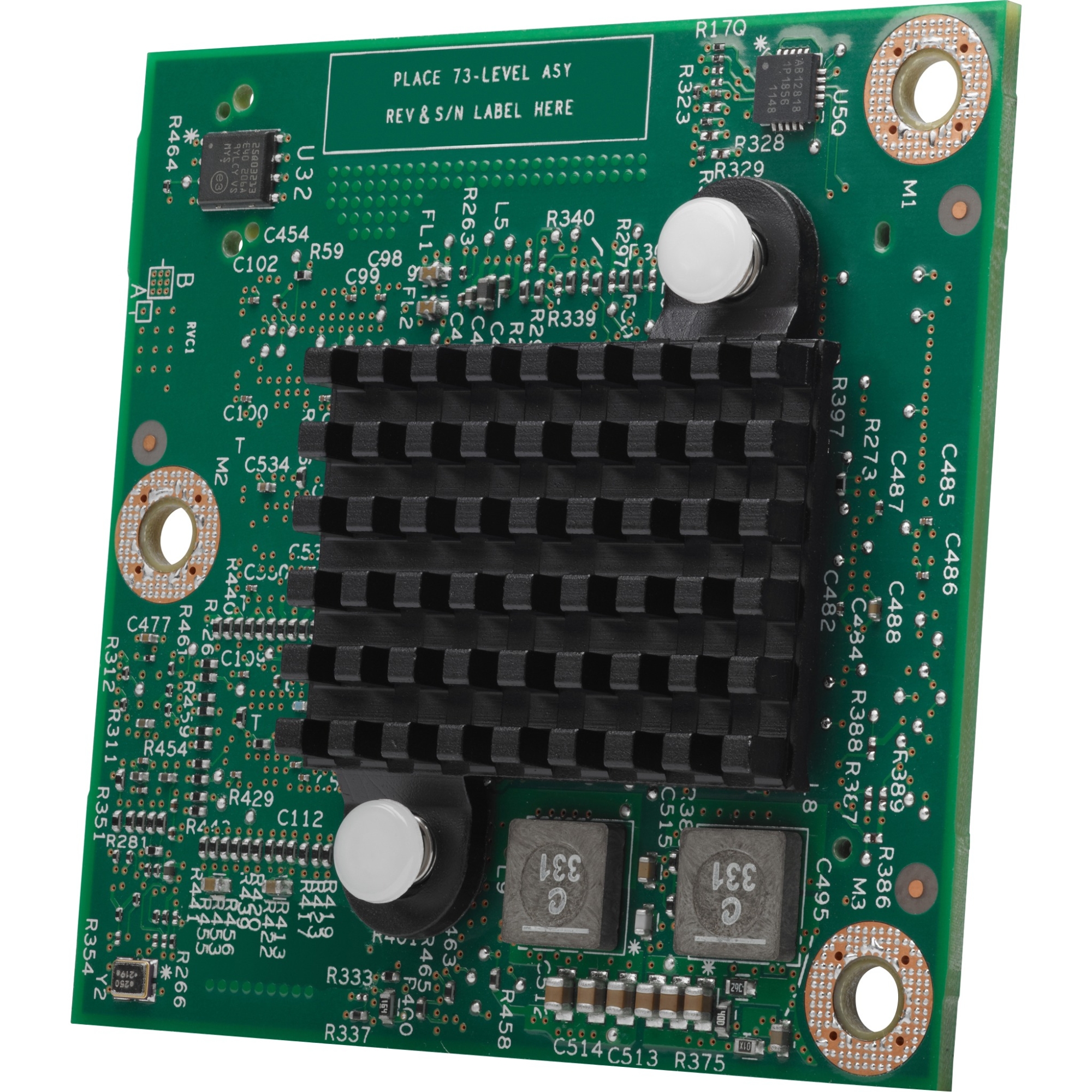

The PVDM4 modules are supported on the Cisco 4451-X platform. You can plug them directly into the single slot on the router motherboard or onto the network interface module (NIM) that supports T1/E1 ports. Enhanced DSP architecture accommodates a new packet-processing engine optimized for rich-media voice applications, while concurrently supporting the time-division multiplexing IP (TDM-IP) voice framework.
A PVDM4 module plugged onto the motherboard delivers IP-based voice services such as conferencing, media optimization, and transcoding. A PVDM4 module plugged onto the NIM daughter card would be used for voice T1/E1 connectivity.
All the PVDM4 modules have the same form factor and are field-upgradable to allow you to easily scale your voice deployments.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Name:
256-Channel High-Density Voice DSP Module, or Spare
Product Type:
PVDM
Technical Information
Application/Usage:
- Voice
Physical Characteristics
Height:
17 mm
Width:
63.5 mm
Depth:
66.5 mm
Weight (Approximate):
36.3 g
Miscellaneous
Compatibility:
Cisco 4400 Series Integrated Services Routers
