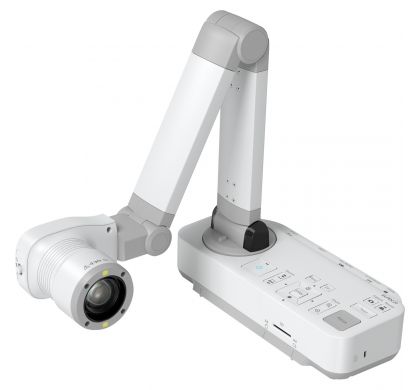

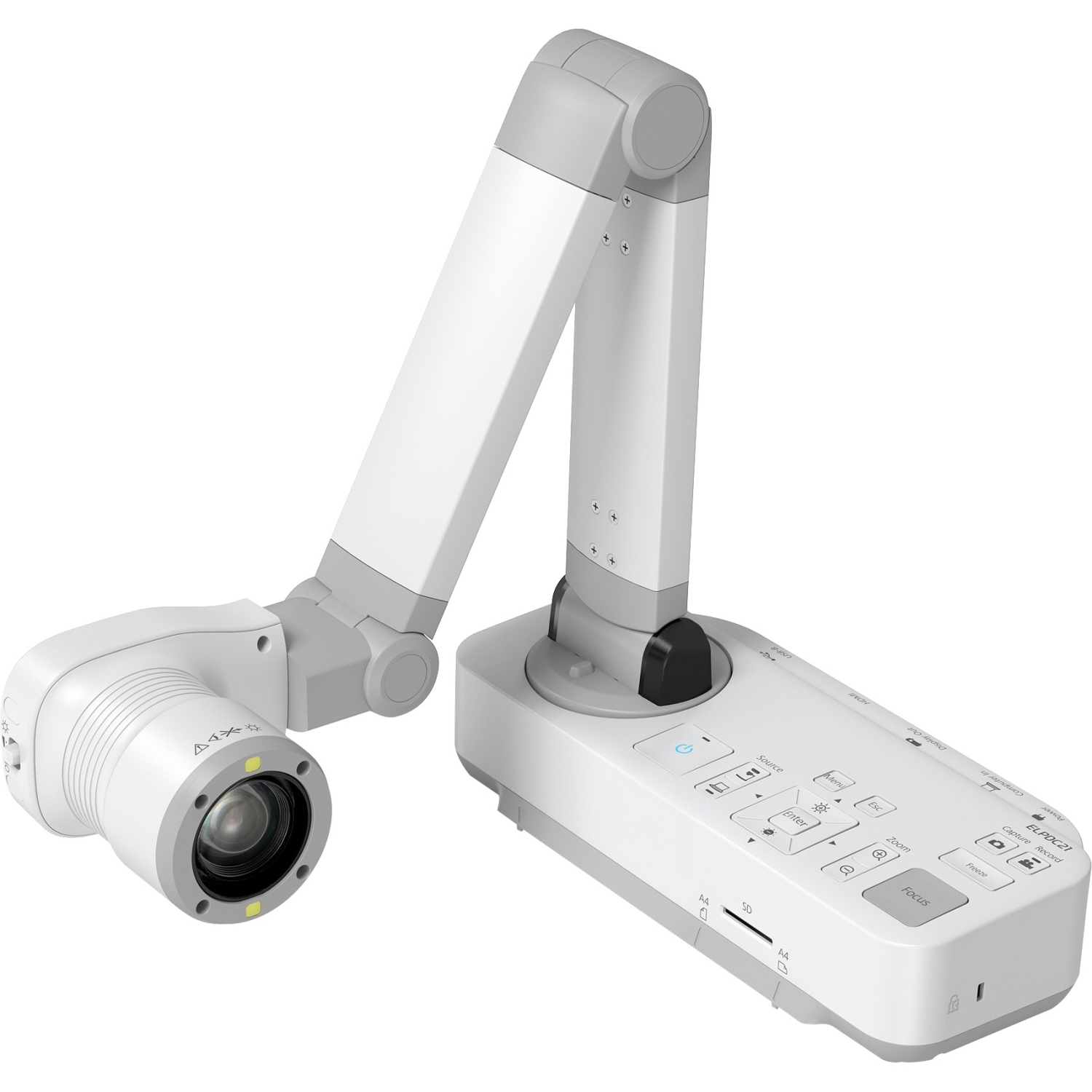

EPSON ELP-DC21 Document Camera
Description
Take lessons further with the Full HD 1080p resolution Epson ELP-DC21 document camera. This flexible document camera easily captures and displays books, 3D objects and experiments. Simplified connectivity makes installation and control easier than ever before. The ELP-DC21 has a robust and durable design, with great security features allowing it to be permanently placed in a classroom or boardroom. Teachers can use the ELP-DC21 to demonstrate the view from a microscope, a live experiment in science class or display fine prints from an architectural drawing onto the bigger projected screen. Compatible with Epson EIT (Easy Interactive Tools) software, users can take advantage of features such as split screen mode, video recording with audio, image capturing and save recordings to an SD card or computer.
Specifications
General Information
Technical Information
- VGA
- USB (UVC)
- AVI
- PC
- Mac
Interfaces/Ports
- 1 x Type B USB 1.1 - USB
- 1 x VGA In
- 1 x VGA Out
- 1 x HDMI - Output
- 1 x Microphone
Power Description
- 120 V AC
- 230 V AC
Physical Characteristics
Miscellaneous
- ELP-DC21 Document Camera
- External AC Power Adaptor with Power Cord
- VGA Cable
- 3m USB Cable
- User's Manual Set CD ROM
- Remote Control
- 2 x AA Batteries
- Microscope Adaptor
- Quick Start Guide
- Warranty Card
- Shooting Area Maximum 297 x 526 mm at 1080p output resolution
- White Balance Yes (Auto)
- Exposure Yes (Auto)
- Brightness control Off, Middle, High
- Image Rotation Yes
- Image Freeze Yes
- Source Search Yes
- Aspect Ratio Yes (Auto)
- Digital Scroll Pan/Tilt Yes
- Flicker Reduction Yes (50Hz, 60Hz)
- Negative/Positive Conversion Yes
- Colour & Black & White Selection Yes
- Split Screen Yes
- Time Lapse Yes
- Microscope View Yes (Microscope Adaptor Included)
- SD Card Slot Yes
- Still Image Saving Formats & Slideshow Capture: JPEG (Resolution: 1920 x 1080)
- Slideshow : JPEG (Resolution 7680 x 5760)
- Video Movie Video Capture & Play Capture: AVI (Motion JPEG + PCM) Resolution: 720p
- File size: up to 2GB
