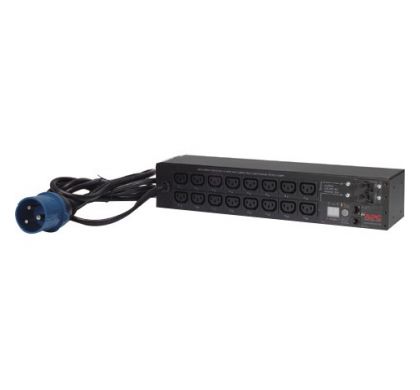

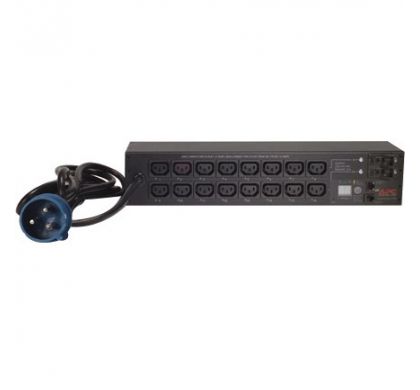

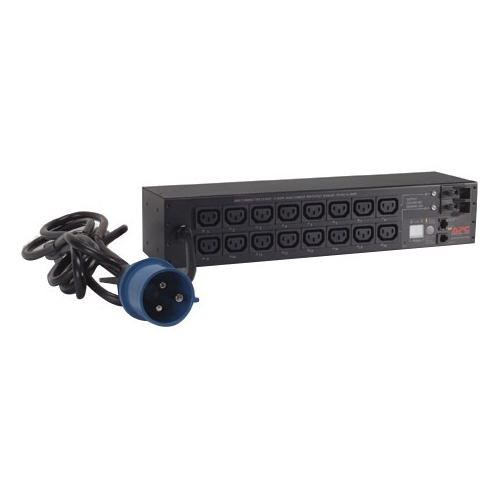

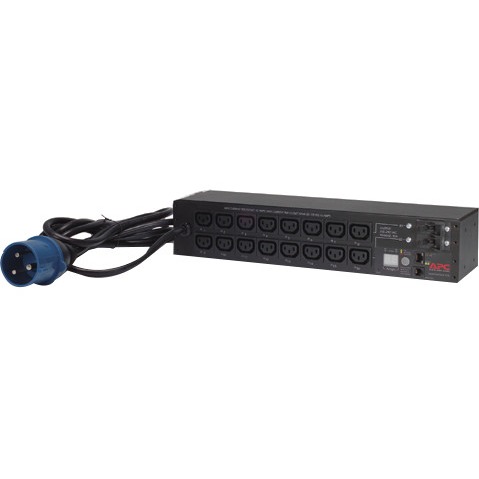

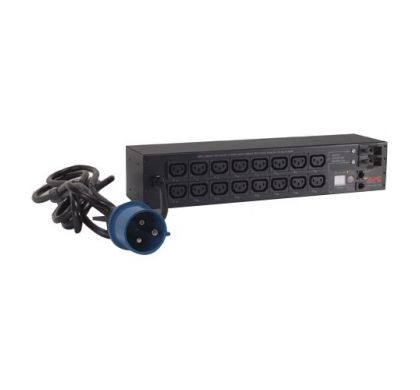

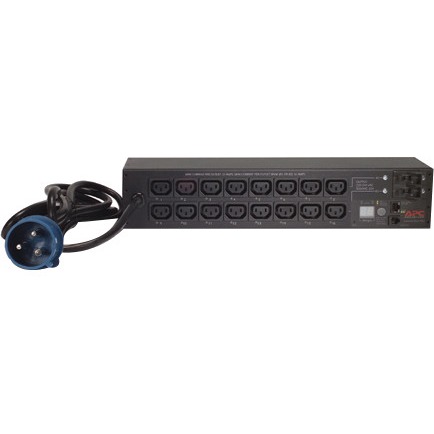

APC Switched Rack PDU
Description
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Switched Rack
Product Name:
Rack PDU, Switched, 2U, 32A, 230V, (16)C13
Product Type:
PDU
Technical Information
Input Receptacles:
1 x IEC 60309 (2P+E) 32A
Output Receptacles:
16 x IEC 60320 C13
Power Description
Input Voltage:
- 230 V AC
Output Voltage:
- 230 V AC
Power Rating:
7.36 kVA
Input Current:
- 32 A
Physical Characteristics
Form Factor:
Rack-mountable
Rack Height:
2U
Height:
89 mm
Width:
445 mm
Depth:
114 mm
Weight (Approximate):
4.50 kg
Miscellaneous
Package Contents:
- Rack PDU, Switched, 2U, 32A, 230V, (16)C13
- Documentation CD
- Installation Guide
- Rack Mounting Brackets
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
- REACH
Warranty
Standard Warranty:
2 Year
