APC PDU

AP7822B
Available
Please contact us for pricing

Description

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers.

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Name:

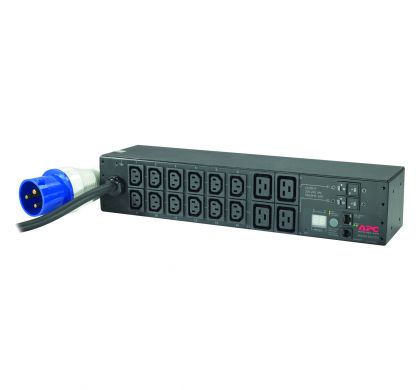

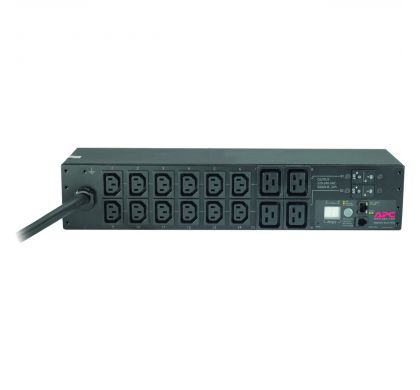

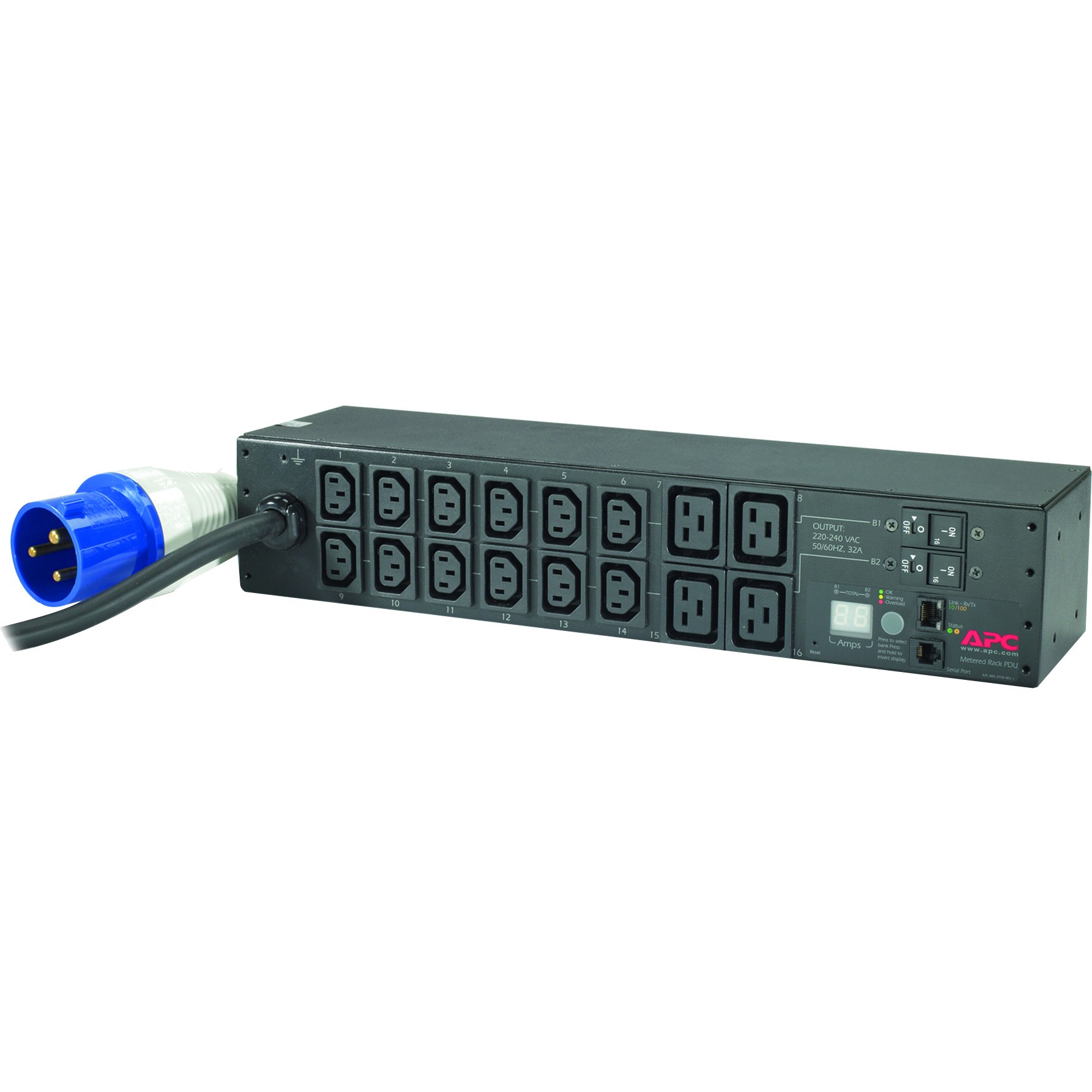

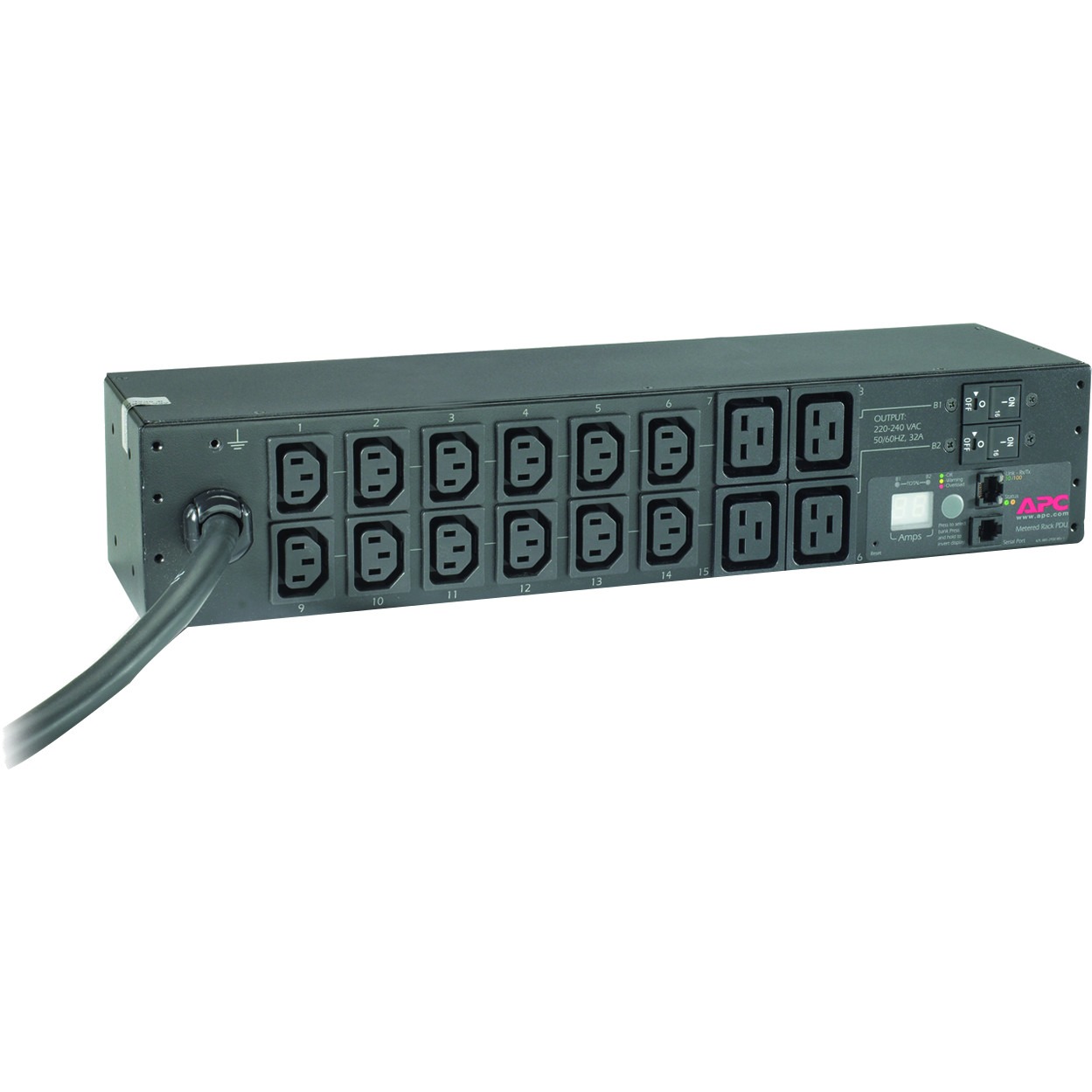

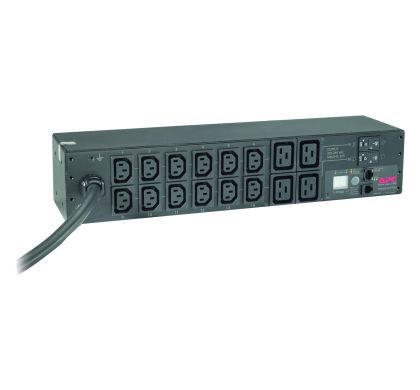

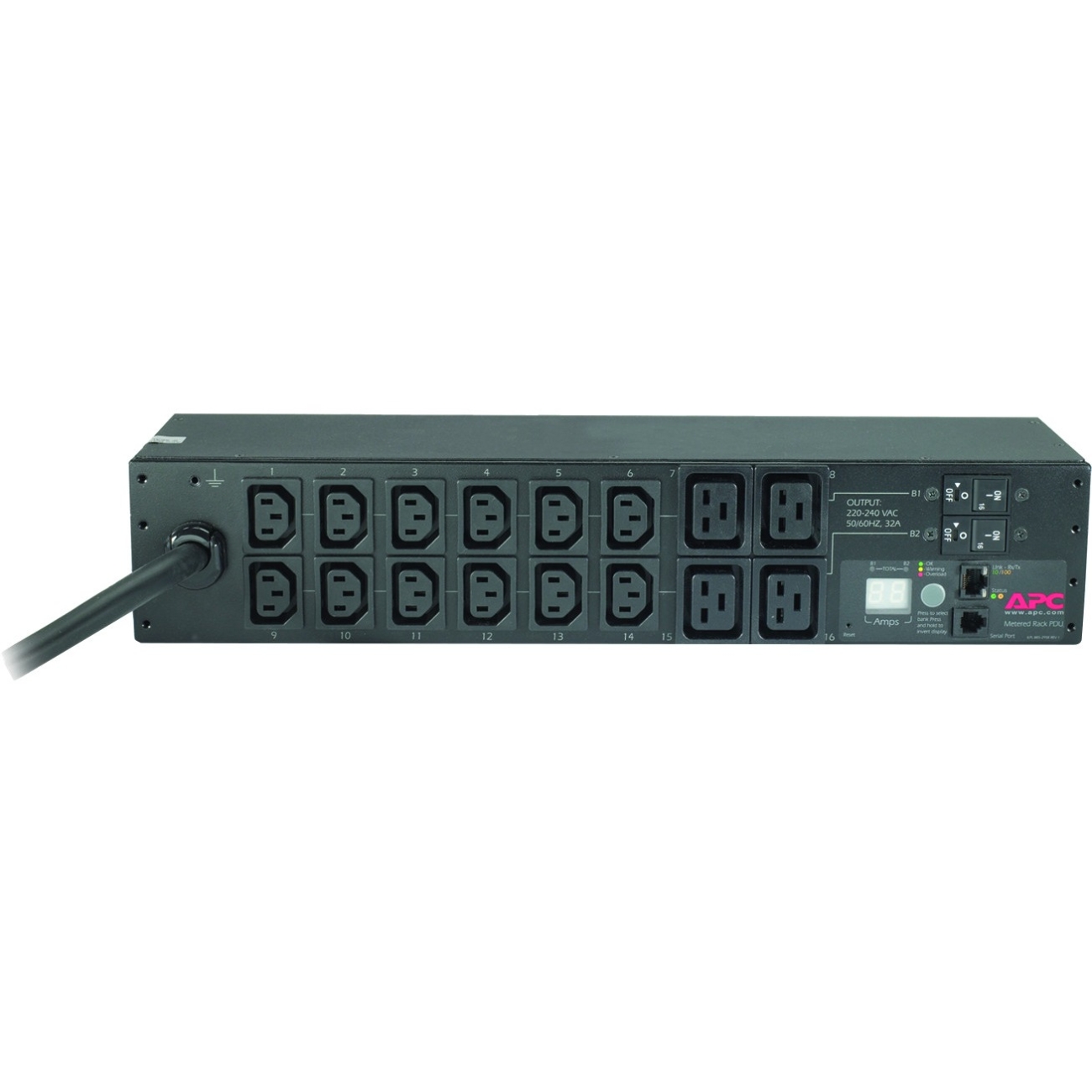

Rack PDU, Metered, 2U, 32A, 230V, (12) C13 & (4) C19
Product Type:
PDU

Technical Information

Input Receptacles:
1 x IEC 309 32A 2P+E
Output Receptacles:
  • 12 x IEC 60309 C13
  • 4 x IEC 60320 C19

Power Description

Output Voltage:
  • 230 V AC

Physical Characteristics

Form Factor:
Rack-mountable
Rack Height:
2U
Height:
88 mm
Width:
444 mm
Depth:
112 mm
Weight (Approximate):
3.36 kg

Miscellaneous

Package Contents:
  • Rack PDU, Metered, 2U, 32A, 230V, (12) C13 & (4) C19
  • Cord Retention Bracket(s)
  • Installation Guide
  • Rack Mounting Brackets
  • User Manual
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
  • REACH

Warranty

Standard Warranty:
2 Year
