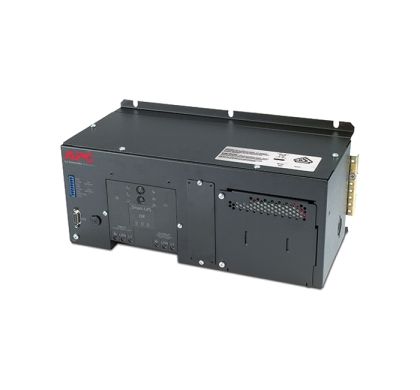

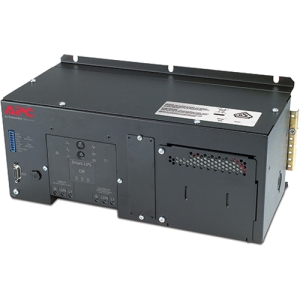

APC Line-interactive UPS - 500 VA/325 WWall Mountable, Panel Mount
Description
Reliable protection for industrial controls.
Continuity of process control is critical across a wide range of Industrial segments: Water/Waste Water, Biotech / Pharmaceutical, Transportation, Chemical, Food & Beverage, Semiconductor, Automotive, Renewable Energy. Equipment utilized in these segments is often subjected to harsh environments including wide temperature ranges or air characteristics with elevated moisture and salt content. APC offers a range of UPS solutions for industrial control applications including communication accessories for dry contact I/O, Modbus and network management. During a power event, whether the requirement is safe shutdown or maintaining data integrity, the APC solution provides reliable protection.
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Name:
DIN Rail - Panel Mount UPS with High Temp Battery 500VA 230V
Product Type:
Line-interactive UPS
Technical Information
Dataline Protection:
- RS-232
- DB-9
Emergency Power OFF:
Yes
Power Description
Load Capacity (VA):
500 VA
Load Capacity (Watt):
325 W
Output Voltage:
- 230 V AC
Management
Alarm:
- On Battery
- Low Battery
- Overload
Controls/Indicators
Status Indicators:
- On Line
- On Battery
- Replace Battery
- Overload
Interfaces/Ports
Serial Port:
Yes
Total Number of Expansion Slots:
1
Battery Information
Number of Batteries:
1
Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Sealed Lead Acid
Backup/Run Time (Full Load):
8 Minute
Backup/Run Time (Half Load):
24 Minute
Maximum Battery Recharge Time:
2.50 Hour
Hot Swappable:
Yes
Environmental Conditions
Temperature:
- 40°C
Sound Emission:
55 dB(A)
Thermal Dissipation:
90 BTU/h
Physical Characteristics
Height:
148 mm
Width:
362 mm
Depth:
171 mm
Form Factor:
- Wall Mountable
- Panel Mount
Weight (Approximate):
12.86 kg
