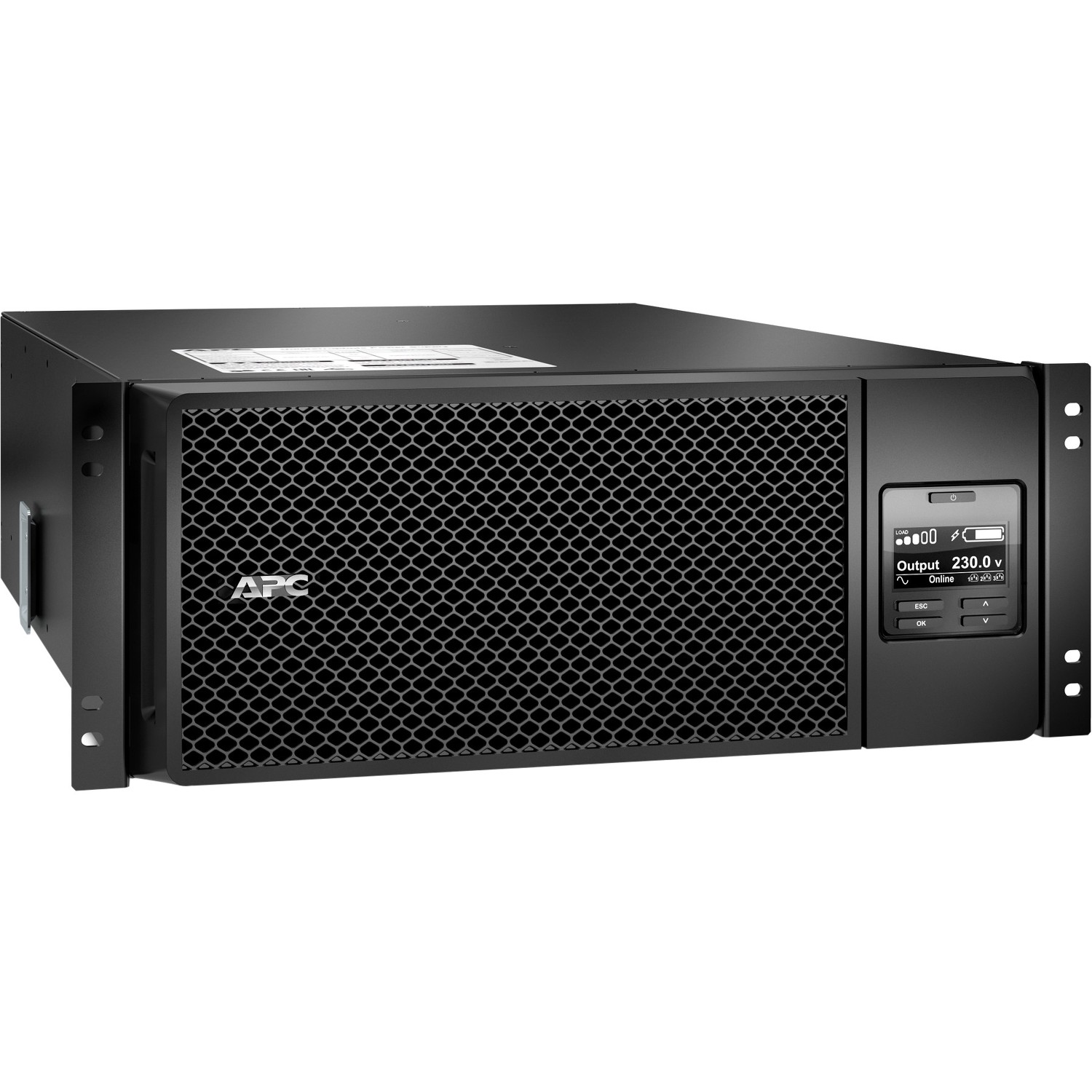

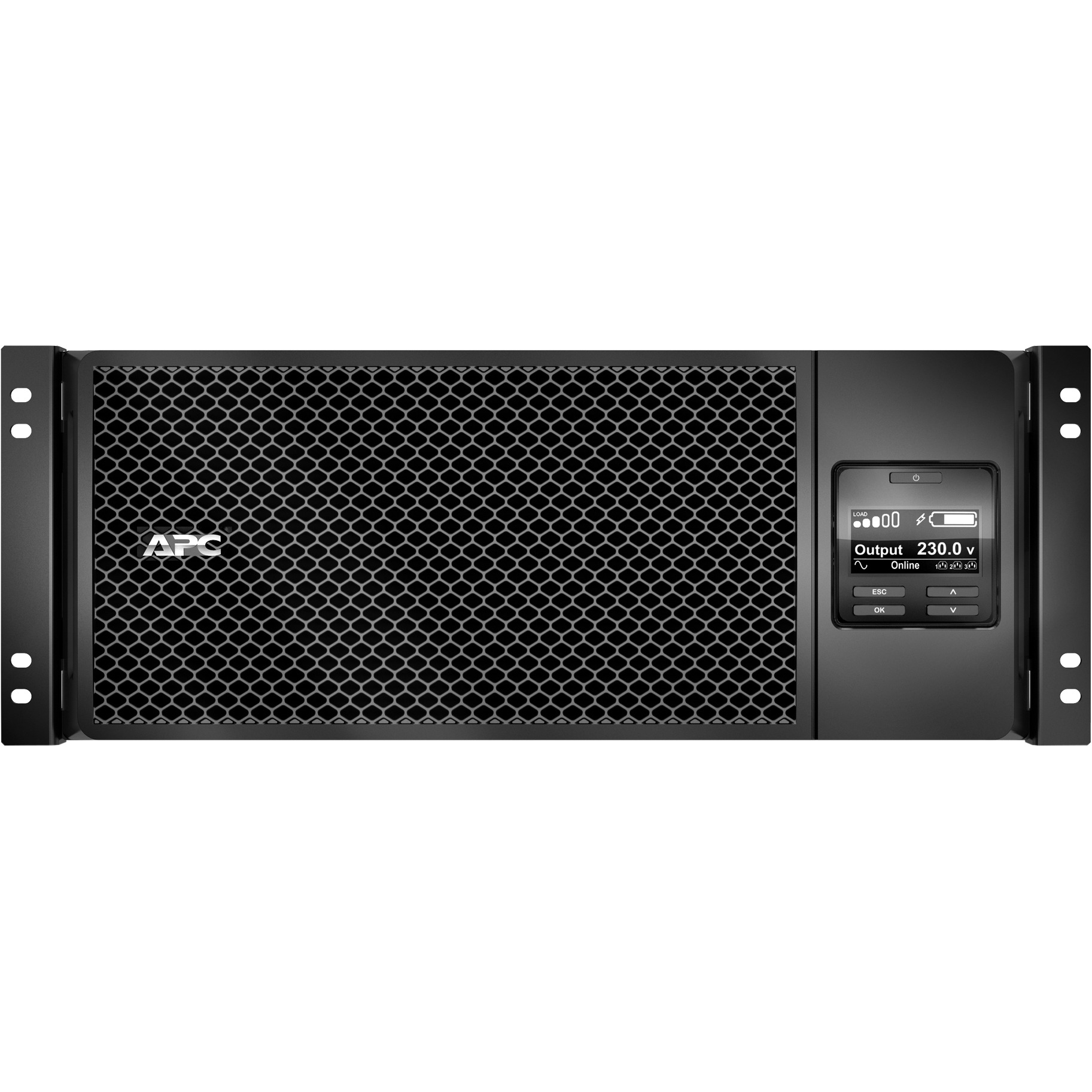

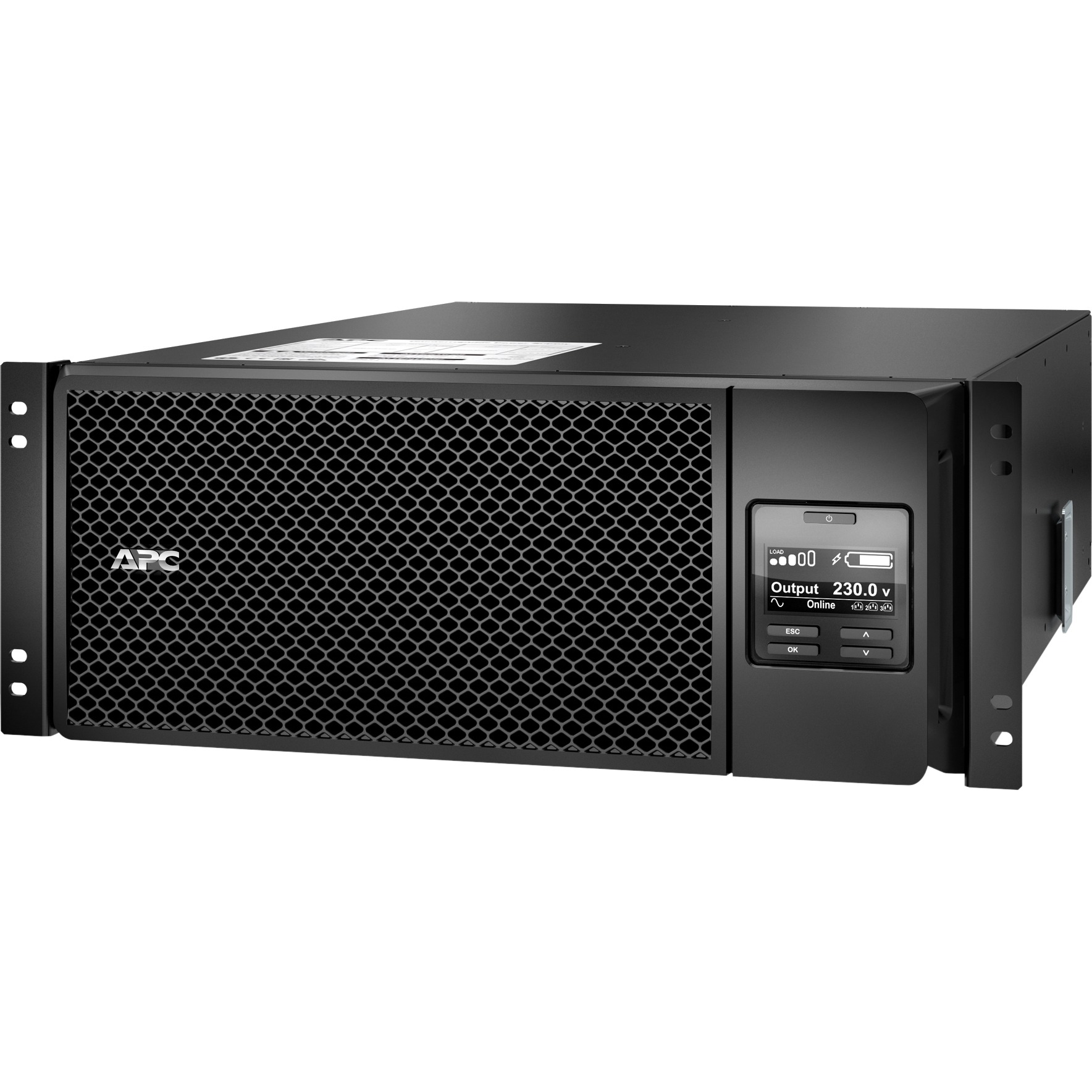

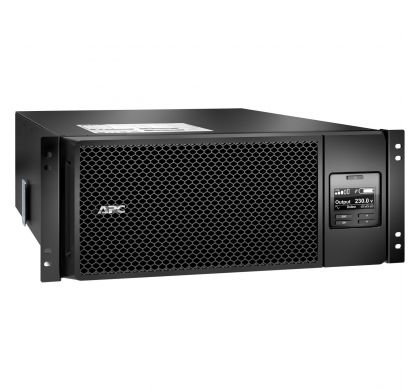

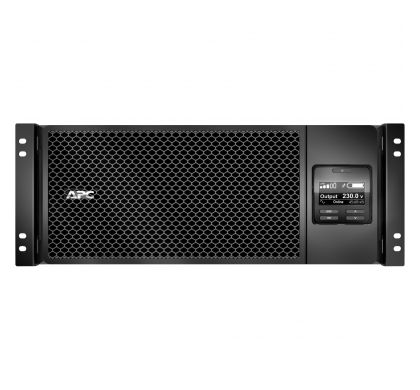

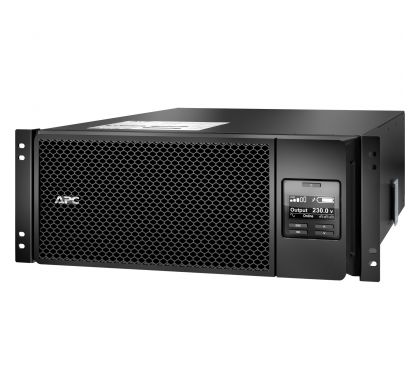

APC by Schneider Electric Smart-UPS SRT Dual Conversion Online UPS - 6 kVA/6 kW - 4U Tower/Rack Convertible
Description
High availability, ruggedized power protection for shipboard and other transportation applications.
Mobile applications present their own unique challenges. Resilience to elevated levels of vibration, conformance to international maritime regulations, such as DNV, enhanced electric hazard protection and ruggedized enclosure are just a few features that are commonly required in mobile applications. APC by Schneider Electric offers customized solutions to meet the demanding requirements for marine, shipboard and other mobile applications.
Specifications
General Information
Manufacturer:
Schneider Electric SA
Manufacturer Website Address:
http://www.schneider-electric.com.au
Brand Name:
APC by Schneider Electric
Product Family:
Smart-UPS SRT
Product Name:
Smart-UPS SRT 6000VA RM 230V Marine
Product Type:
Dual Conversion Online UPS
Technical Information
Plug/Connector Type:
- Hard Wire 3 wire (1PH+N+G)

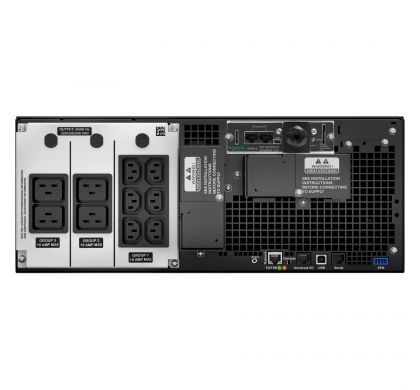

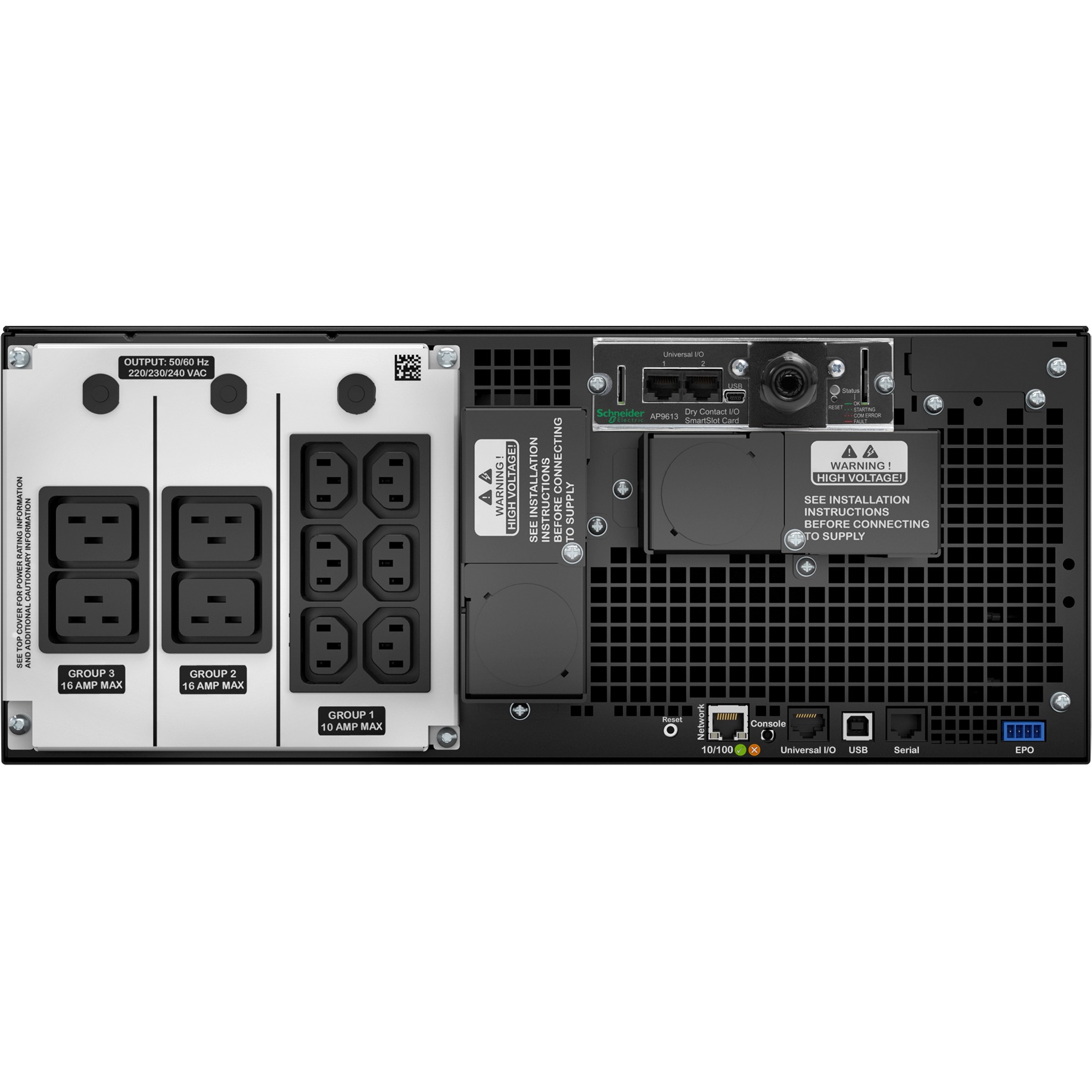

Receptacles:
- 2 x IEC Jumper
- 4 x IEC 60320 C19
- 6 x IEC 60320 C13
- 1 x Hard Wire 3-wire (H N + G)
Power Description
Load Capacity (VA):
6 kVA
Load Capacity (Watt):
6 kW
Input Voltage:
- 230 V AC
Output Voltage:
- 230 V AC
Waveform Type:
Sine Wave
Interfaces/Ports
Network (RJ-45):
Yes
Battery Information
Backup/Run Time (Full Load):
3 Minute
Maximum Battery Recharge Time:
1.50 Hour
Hot Swappable:
Yes
Physical Characteristics
Height:
174 mm
Width:
432 mm
Depth:
719 mm
Rack Height:
4U
Form Factor:
Tower/Rack Convertible
Weight (Approximate):
60 kg
Miscellaneous
Package Contents:
- Smart-UPS SRT 6000VA RM 230V Marine
- CD with Software
- Installation Guide
- Rack Mounting Brackets
- Rack Mounting Hardware
- Rack Mounting Support Rails
- Temperature Probe
- USB Cable
- Warranty Card
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
- REACH
Warranty
Standard Warranty:
3 Year
