APC by Schneider Electric Smart-UPS SRT Dual Conversion Online UPS - 5 kVA/4.50 kW - Rack-mountable

SRT5KRMXLIM
Please Call
Please contact us for pricing

Description

High availability, ruggedized power protection for shipboard and other transportation applications.

Mobile applications present their own unique challenges. Resilience to elevated levels of vibration, conformance to international maritime regulations, such as DNV, enhanced electric hazard protection and ruggedized enclosure are just a few features that are commonly required in mobile applications. APC by Schneider Electric offers customized solutions to meet the demanding requirements for marine, shipboard and other mobile applications.

Specifications

General Information

Manufacturer:
Schneider Electric SA
Manufacturer Website Address:
http://www.schneider-electric.com.au
Brand Name:
APC by Schneider Electric
Product Family:
Smart-UPS SRT
Product Name:
Smart-UPS SRT 5000VA RM 230V Marine
Product Type:
Dual Conversion Online UPS

Technical Information

Plug/Connector Type:
  • Hard Wire 3 wire (1PH+N+G)

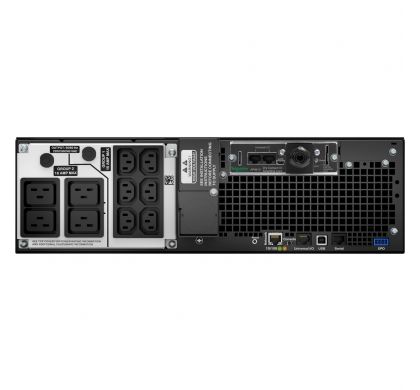

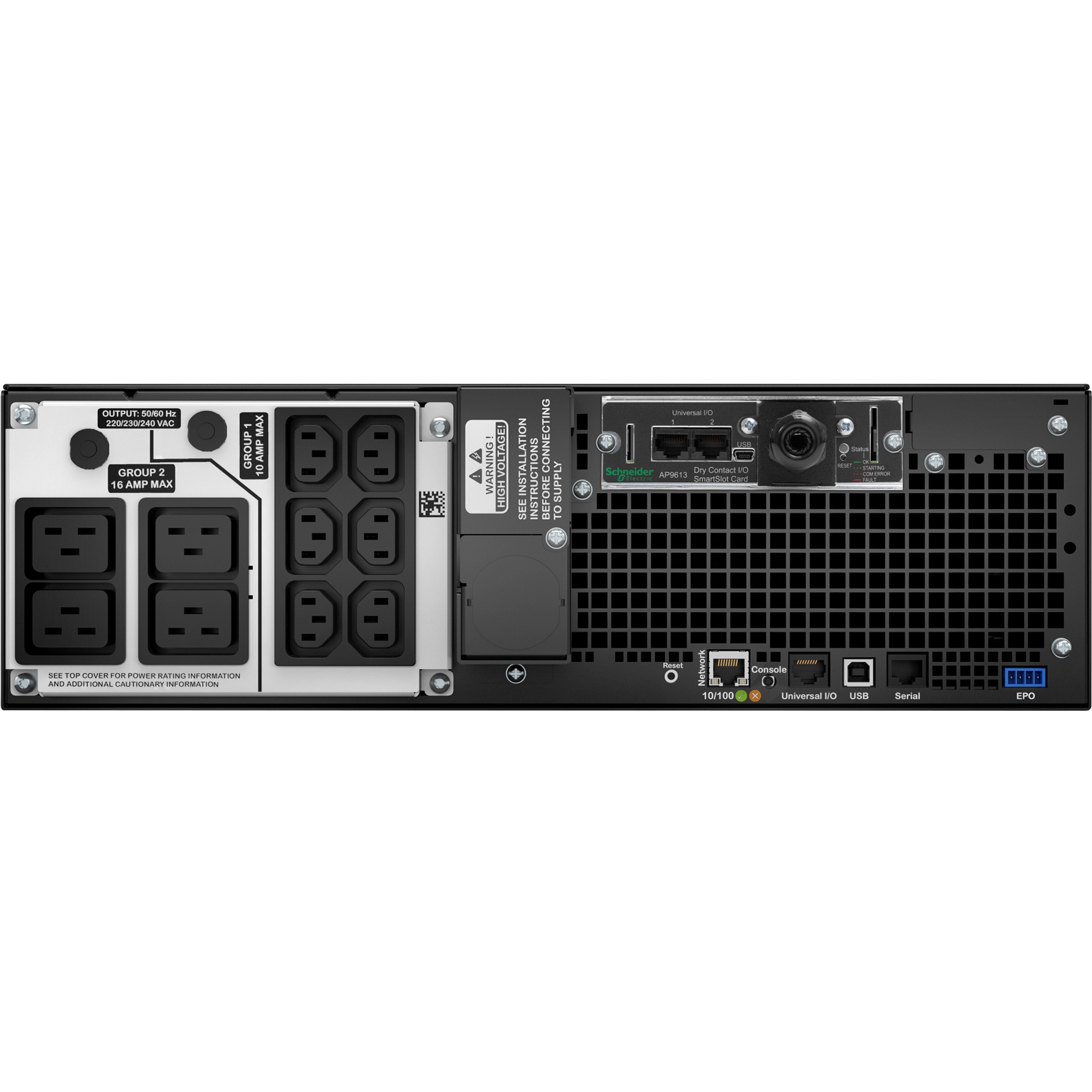

Receptacles:
  • 6 x IEC 60320 C13
  • 2 x IEC Jumper
  • 4 x IEC 60320 C19

Power Description

Load Capacity (VA):
5 kVA
Load Capacity (Watt):
4.50 kW
Input Voltage:
  • 230 V AC
Output Voltage:
  • 220 V AC
  • 230 V AC
  • 240 V AC
Waveform Type:
Pure Sine Wave

Interfaces/Ports

Network (RJ-45):
Yes

Battery Information

Backup/Run Time (Full Load):
4 Minute
Hot Swappable:
Yes

Physical Characteristics

Height:
130 mm
Width:
432 mm
Depth:
719 mm
Form Factor:
Rack-mountable
Weight (Approximate):
54.43 kg

Miscellaneous

Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
  • REACH

Warranty

Standard Warranty:
3 Year
