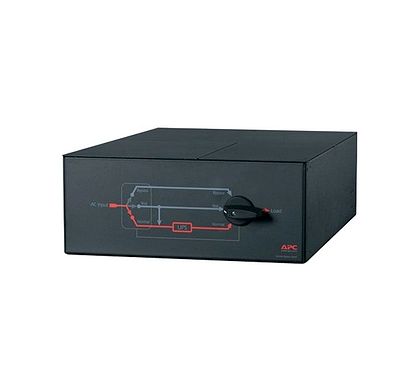

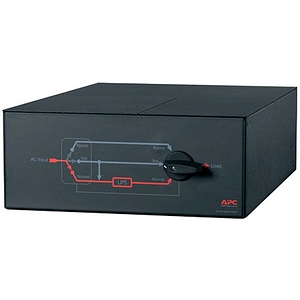

APC SBP16KRMI4U Bypass Switch

APC SBP16KRMI4U Bypass Switch
SBP16KRMI4U
Please Call
Please contact us for pricing

Description

  • 19 inch Rack-Mountable
  • Quick Transfer Rate
  • Wrap Around System Bypass

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Model:
SBP16KRMI4U
Product Name:
100A Maintenance Bypass Panel
Product Type:
Bypass Switch

Technical Information

Plug/Connector Type:
  • Hard Wire 3-wire PH + N + G
  • Hard Wire 4-wire 3PH + G
Receptacles:
  • 3 x Hard Wire 3-wire H N + G
Protection Type:
  • Overload

Power Description

Load Capacity:
20 kVA
Input Voltage:
  • 220 V AC
Input Voltage Range:
  • 230 V ACNominal
Output Voltage:
  • 230 V AC Nominal
Current:
  • 100 A Total Current Draw Per Phase
  • 100 A Input Current Per Phase
  • 100 A Line Current Per Phase
Frequency:
  • 50 Hz
  • 60 Hz

Physical Characteristics

Colour:
  • Black
Form Factor:
19" Rack-mountable
Height:
178 mm
Width:
432 mm
Depth:
673 mm
Weight (Approximate):
21.82 kg

Miscellaneous

Package Contents:
  • 100A Maintenance Bypass Panel
  • Rack Mounting Brackets
  • Installation Guide
  • User Manual
Certifications & Standards:
  • CSA
  • EN 60950
  • GOST
  • IEC 60950
  • UL 1778

Warranty

Standard Warranty:
2 Year
