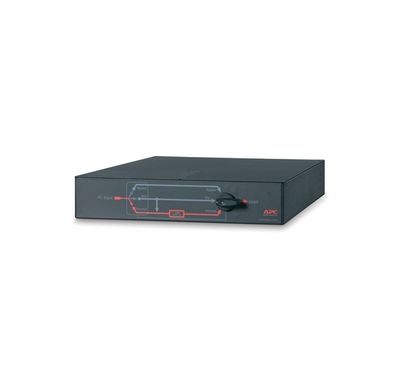

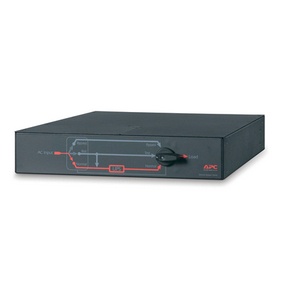

APC SBP6KRMI2U Bypass Switch

APC SBP6KRMI2U Bypass Switch
SBP6KRMI2U
Please Call
Please contact us for pricing

Description

  • Quick Transfer Rate
  • 19 inch Rack-Mountable
  • Wrap Around System Bypass

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Model:
SBP6KRMI2U
Product Name:
1U Rack Mountable Maintenance Bypass Panel
Product Type:
Bypass Switch

Technical Information

Plug/Connector Type:
  • Hard Wire 3-wire PH + N + G
Receptacles:
  • 4 x IEC 320-C19
Protection Type:
  • Overload

Power Description

Load Capacity:
7.68 kVA
Input Voltage:
  • 120 V AC
Input Voltage Range:
  • 230 V ACNominal
Output Voltage:
  • 230 V AC Nominal

Physical Characteristics

Form Factor:
1U Rack-mountable
Height:
88.9 mm
Width:
431.8 mm
Depth:
660.4 mm
Weight (Approximate):
11.34 kg

Miscellaneous

Package Contents:
  • 1U Rack Mountable Maintenance Bypass Panel
  • User Manual
  • Installation Guide
  • Rack Mounting Brackets
Additional Information:
    • Black Color
    • Load Power Factor Range 0 to 1
Certifications & Standards:
  • CSA
  • GOST
  • UL 1778
  • EN 60950
  • IEC 60950

Warranty

Standard Warranty:
2 Year
Parts Warranty/Labor:
  • 2 Year
