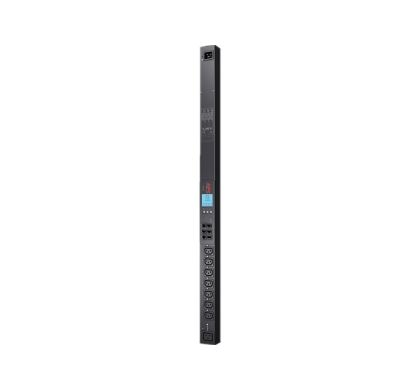

APC Switched Rack AP8958EU3 PDU - 1 x IEC 60320 C19, 7 x IEC 60320 C13 - Zero U Rack-mountable
Description
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Switched Rack
Product Model:
AP8958EU3
Product Name:
Switched Rack AP8958EU3 8-Outlets PDU
Product Type:
PDU
Technical Information
Output Receptacles:
- 1 x IEC 60320 C19
- 7 x IEC 60320 C13
Power Description
Input Voltage:
- 200 V AC
- 208 V AC
- 230 V AC
Output Voltage:
- 200 V AC
- 208 V AC
- 230 V AC
Management
Management:
- Protocols:
- Web
- SNMP
- Telnet
- Command Line Interface
Physical Characteristics
Form Factor:
Zero U Rack-mountable
Weight (Approximate):
3.23 kg
Miscellaneous
Package Contents:Switched Rack AP8958EU3 8-Outlets PDU Installation Guide Locking Input Power Cord Rack Mounting Brackets Safety Guide Sample Locking IEC Power Cord Serial Configuration Cable
Additional Information:
- Input Receptacle: IEC 309 16A 2P+E
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- REACH
- RoHS
Warranty
Standard Warranty:
2 Year
