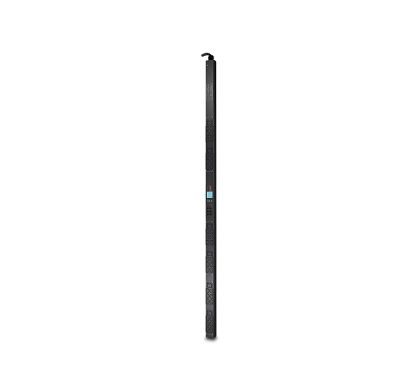

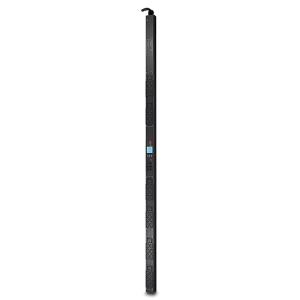

APC Metered Rack AP8881 PDU

AP8881
Please Call
Please contact us for pricing

Description

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Metered Rack
Product Model:
AP8881
Product Name:
Metered Rack AP8881 42-Outlets 11kW PDU
Product Type:
PDU

Technical Information

Input Receptacles:
2
Output Receptacles:
  • 36 x IEC 60320 C13
  • 6 x IEC 60320 C19

Power Description

Input Voltage:
  • 400 V AC
Output Voltage:
  • 230 V AC
Power Rating:
11 kVA

Management

Management:
  • Protocols:
    • SNMP
    • Telnet

Physical Characteristics

Form Factor:
Rack-mountable
Number of Cord/Cable:
1
Height:
1791 mm
Width:
56 mm
Depth:
44 mm
Weight (Approximate):
6.38 kg

Miscellaneous

Package Contents:
  • Metered Rack AP8881 42-Outlets 11kW PDU
  • Installation Guide
  • Rack Mounting Brackets
  • Safety Guide
  • Sample Locking IEC Power Cord
  • Serial Configuration Cable
Additional Information:
  • Input Receptacles:
    • IEC 309 16A 3P+N+PE
    • IEC 309 20A 3P+N+E
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
  • REACH

Warranty

Standard Warranty:
2 Year
