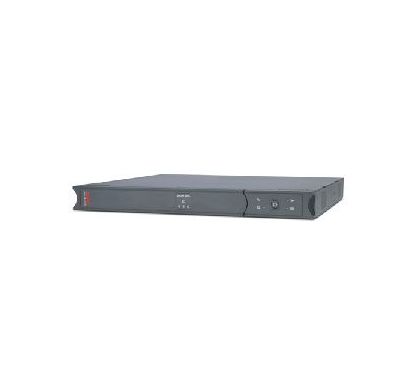

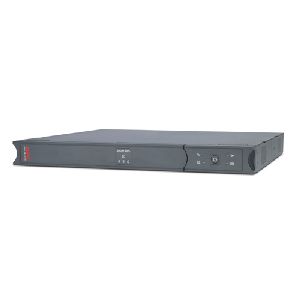

APC Smart-UPS Line-interactive UPS - 450 VA/280 W - 1U Tower/Rack Mountable
Description
Smart-UPS SC 450VA Rackmount/Tower is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection.
SC Series of UPS are not recommended for HP servers
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Smart-UPS
Product Series:
SC
Product Name:
Smart-UPS SC 450VA Rackmount/Tower
Product Type:
Line-interactive UPS
Technical Information
Plug/Connector Type:
- IEC 320-C14
Receptacles:
- IEC 320-C13
Dataline Protection:
- RJ-11
- RJ-45
Emergency Power OFF:
Optional
Power Description
Load Capacity (VA):
450 VA
Load Capacity (Watt):
280 W
Input Voltage:
- 220 V AC
Output Voltage:
- 230 V AC
Waveform Type:
Step Simulated Sine Wave
Surge Energy Rating:
320 J
Management
Alarm:
- Low Battery
- On Battery
Battery Management:
Intelligent Battery Management
Controls/Indicators
Status Indicators:
- On Line
- On Battery
- Replace Battery
- Overload
Interfaces/Ports
Serial Port:
Yes
Battery Information
Battery Characteristics:
Maintenance-free
Battery Chemistry:
Sealed Lead Acid
Backup/Run Time (Full Load):
5.90 Minute
Backup/Run Time (Half Load):
19.40 Minute
Hot Swappable:
Yes
Environmental Conditions
Temperature:
- 45°C
Sound Emission:
38 dB(A)
Thermal Dissipation:
38 BTU/h
Physical Characteristics
Colour:
- Grey
Height:
43.7 mm
Width:
431.8 mm
Depth:
383 mm
Rack Height:
1U
Form Factor:
Tower/Rack Mountable
Weight (Approximate):
10.16 kg
Miscellaneous
Package Contents:
- Smart-UPS SC 450VA Rackmount/Tower
- CD with software
- Rack Mounting Brackets
- Smart UPS signalling RS-232 cable
- User Manual
Additional Information:
- Front-access servicing
- Multiple mounting methods
- Boost and Trim Automatic Voltage Regulation (AVR)
- Power conditioning
- Cold-start capable
- Output Voltage Distortion: Less than 5% at full load
- Crest Factor: up to 5 : 1
- Replacement battery cartridge quantity: 1
- Units per Pallet: 24.00
Certifications & Standards:
- UL 1449
- C-tick
- CE
- EN 50091-1
- EN 50091-2
- GOST
- PCBC
- VDE
Warranty
Standard Warranty:
2 Year
