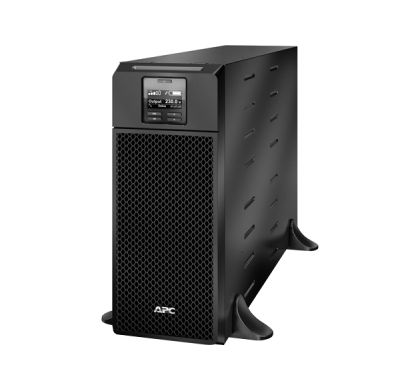

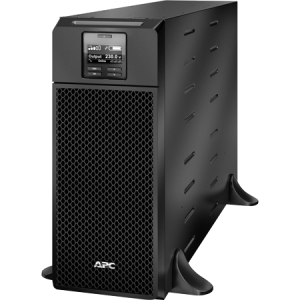

APC Smart-UPS On-Line Dual Conversion Online UPS - 6000 VA/6000 WTower

SRT6KXLI
Please Call
Please contact us for pricing

Description

A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Specifications

General Information

Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Smart-UPS On-Line
Product Name:
Smart-UPS SRT 10000VA 230V
Product Type:
Dual Conversion Online UPS

Technical Information

Plug/Connector Type:
  • Hard Wire 3 wire (1PH+N+G)

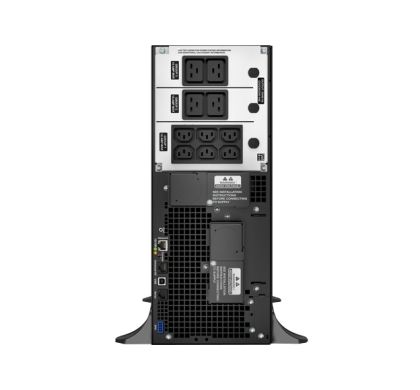

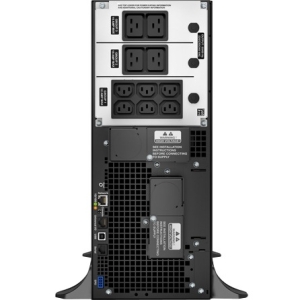

Receptacles:
  • 1 x Hard Wire 3-wire (H N + G)
  • 6 x IEC 60320 C13
  • 4 x IEC 60320 C19
  • 2 x IEC Jumper
Protection Type:
  • Surge
Bypass Switch:
Automatic & Manual
Emergency Power OFF:
Yes

Power Description

Load Capacity (VA):
6000 VA
Load Capacity (Watt):
6000 W
Input Voltage:
  • 230 V AC
Output Voltage:
  • 230 V AC
Waveform Type:
Sine Wave
Surge Energy Rating:
480 J

Interfaces/Ports

Network (RJ-45):
Yes
USB:
Yes
Total Number of Expansion Slots:
1

Battery Information

Number of Batteries:
1
Battery Characteristics:
Maintenance-free, Sealed, Spill-proof
Battery Chemistry:
Sealed Lead Acid
Backup/Run Time (Full Load):
2 Minute
Backup/Run Time (Half Load):
8 Minute
Maximum Battery Recharge Time:
3 Hour

Environmental Conditions

Temperature:
  • 40°C
Sound Emission:
55 dB(A)
Thermal Dissipation:
1300 BTU/h

Physical Characteristics

Colour:
  • Black
Height:
432 mm
Width:
174 mm
Depth:
719 mm
Form Factor:
Tower
Weight (Approximate):
60 kg

Miscellaneous

Package Contents:
  • Smart-UPS SRT 6000VA 230V
  • CD with Software
  • Documentation CD
  • Installation Guide
  • Removable Support Feet
  • Temperature Probe
  • USB Cable
  • Warranty Card
Certifications & Standards:
  • CE
  • CE Mark
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • REACH
  • RoHS

Warranty

Standard Warranty:
3 Year
