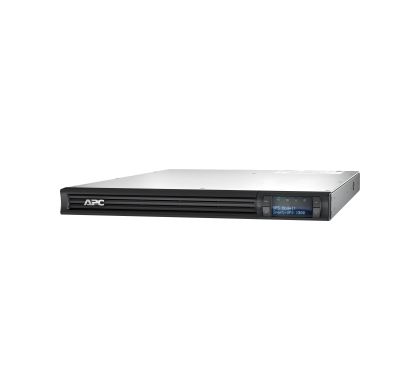

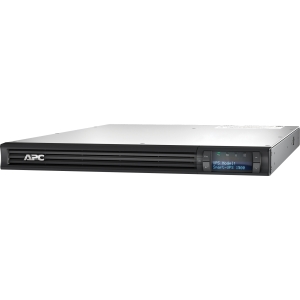

APC Smart-UPS Line-interactive UPS - 1500 VA/1000 W - 1U Rack-mountable
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Family:
Smart-UPS
Product Name:
Smart-UPS 1500VA LCD RM 1U 230V
Product Type:
Line-interactive UPS
Technical Information
Plug/Connector Type:
- IEC 60320 C14
Receptacles:
- 2 x IEC Jumper
- 4 x IEC 60320 C13
Protection Type:
- Lightning
- Surge
- Spike
Cord Length:
2.44 m
Power Description
Load Capacity (VA):
1500 VA
Load Capacity (Watt):
1000 W
Input Voltage:
- 230 V AC
Output Voltage:
- 230 V AC
Input Current:
- 12 A
Waveform Type:
Sine Wave
Surge Energy Rating:
540 J
Management
Alarm:
- Configurable Delay
- Low Battery
- On Battery
Interfaces/Ports
Serial Port:
Yes
Network (RJ-45):
Yes
USB:
Yes
Total Number of Expansion Slots:
1
Battery Information
Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Sealed Lead Acid
Backup/Run Time (Full Load):
5 Minute
Backup/Run Time (Half Load):
17 Minute
Maximum Battery Recharge Time:
4 Hour
Hot Swappable:
Yes
Physical Characteristics
Colour:
- Black
Height:
44 mm
Width:
432 mm
Depth:
665 mm
Rack Height:
1U
Form Factor:
Rack-mountable
Weight (Approximate):
24.09 kg
Miscellaneous
Package Contents:
- Smart-UPS 1500VA LCD RM 1U 230V
- CD with Software
- Documentation CD
- Installation Guide
- Rack Mounting Support Rails
- Smart UPS Signaling RS-232 Cable
- USB Cable
- Warranty Card
Certifications & Standards:
UL 1449
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- REACH
- RoHS
Warranty
Standard Warranty:
3 Year
