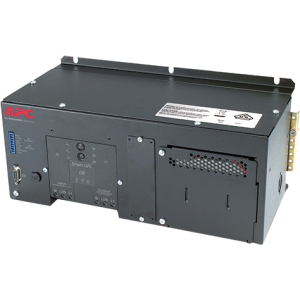

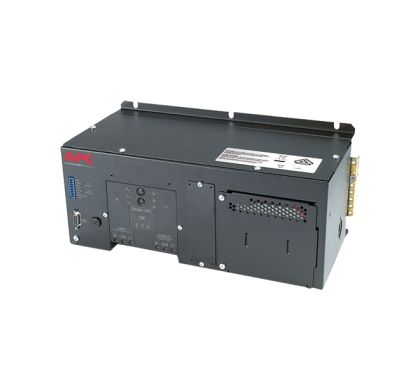

APC Line-interactive UPS - 500 VA/325 W
Specifications
General Information
Manufacturer:
American Power Conversion Corp
Manufacturer Website Address:
http://www.apc.com/au
Brand Name:
APC
Product Name:
DIN Rail - Panel Mount UPS with Standard Battery 500VA 230V
Product Type:
Line-interactive UPS
Technical Information
Plug/Connector Type:
- Hard Wire 3 wire (1PH+N+G)
Receptacles:
- 1 x Hard Wire 3-wire (H N + G)
Emergency Power OFF:
Yes
Power Description
Load Capacity (VA):
500 VA
Load Capacity (Watt):
325 W
Input Voltage:
- 240 V AC
Output Voltage:
- 240 V AC
Surge Energy Rating:
540 J
Management
Alarm:
- Overload
- Low Battery
- On Battery
Battery Management:
Intelligent Battery Management
Controls/Indicators
Status Indicators:
LED Status Display with Load and Battery Bar-Graphs and On Line : On Battery : Replace Battery : and Overload Indicators
Interfaces/Ports
Serial Port:
Yes
Total Number of Expansion Slots:
1
Battery Information
Number of Batteries:
1
Battery Characteristics:
Spill-proof, Maintenance-free
Battery Chemistry:
Sealed Lead Acid
Backup/Run Time (Full Load):
8 Minute
Backup/Run Time (Half Load):
24 Minute
Maximum Battery Recharge Time:
2.50 Hour
Hot Swappable:
Yes
Environmental Conditions
Temperature:
- 40°C
Sound Emission:
55 dB(A)
Thermal Dissipation:
90 BTU/h
Physical Characteristics
Height:
148 mm
Width:
362 mm
Depth:
171 mm
Weight (Approximate):
12.86 kg
Miscellaneous
Package Contents:
- DIN Rail - Panel Mount UPS with Standard Battery 500VA 230V
- CD with Software
- Documentation CD
- Installation Guide
- Smart UPS Signalling RS-232 Cable
- Wall-mounting Template
Certifications & Standards:
- CE
- VDE
Green Compliant:
Yes
Green Compliance Certificate/Authority:
- RoHS
- REACH
Warranty
Standard Warranty:
2 Year
