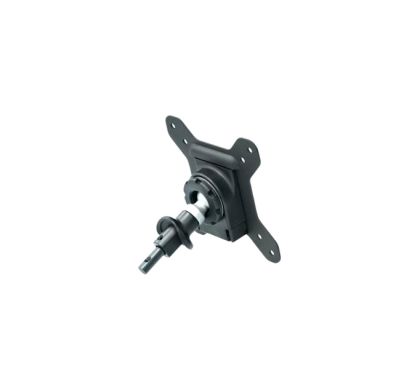

ATDEC Spacedec SD-POS-VBM-B2B Mounting Adapter for Flat Panel Display
Description
This accessory is designed for the SD-POS-VBM. It allows for a second screen to be attached in a back to back configuration. It features a Quick Attachment head for easy screen mounting / replacement and an integrated ball-joint mechanism for tilt / pan adjustment and rotation adjustment. It suits displays up to 44 lbs. (20kg) and comes with display mounting hardware.
Specifications
General Information
Manufacturer:
Atdec Pty Ltd
Manufacturer Website Address:
http://www.atdec.com
Brand Name:
Spacedec
Product Model:
SD-POS-VBM-B2B
Product Name:
SD-POS-VBM-B2B Back 2 Back Mounting Adapter
Product Type:
Mounting Adapter
Product Information
Device Supported:
- Flat Panel Display
Maximum Load Capacity:
19.96 kg
Maximum Screen Size Supported:
- 61 cm (24")
Features:
- Tilt
Physical Characteristics
Colour:
- Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
- 100 x 100
- 75 x 75
Material:
- Aluminium
- Plastic
- Steel
Weight (Approximate):
612.3 g
Miscellaneous
Package Contents:
- 1 x Screw Cover
- 1 x POS Assembly
- 1 x VESA Plate
- 1 x Top Cap
- 1 x Installation Template
- 1 x Tightening Tool
- 4 x M4x10mm Screws
- 4 x M4x12mm Screw
- 4 x M4x16mm Screws
- 1 x Security Screw
- 1 x 2.5mm Allen Key
- 1 x 2mm Allen Key
- 4 x 14 Gauge Screws
- 1 x M5 Grub Screw
Additional Information:
- This accessory easily converts the SD-POS-VBM single display unit into a dual back-to-back configuration
- Viewing angle up to 40
Compatibility:
Flat Panel Display
Assembly Required:
- Yes
Warranty
Standard Warranty:
10 Year
