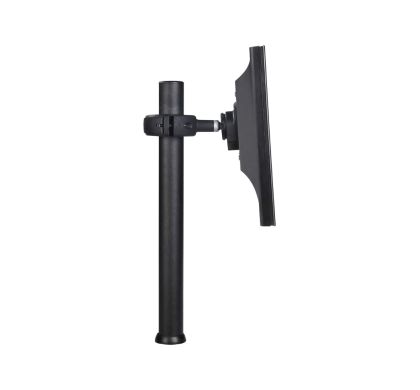

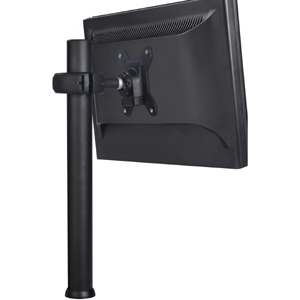

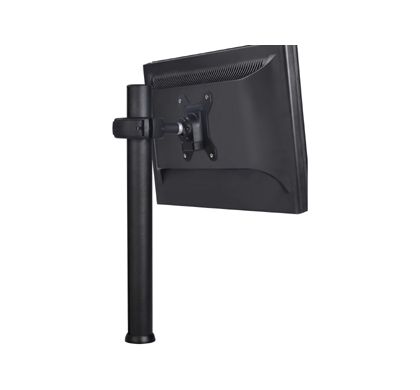

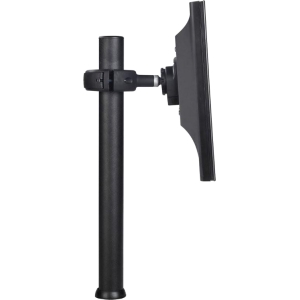

ATDEC Spacedec SD-DP-420 Pole Mount for Flat Panel Display
Description
The 16.5" (420mm) pole comes with one Quick Shift Donut to guarantee a customized display installation. The cutting-edge Quick Shift lever allows screen to be moved up and down the pole by hand, without the need for any tools. Viewing angle and screen orientation are also fully adjustable, finished off with a quick release mechanism to rapidly remove and change screens. Built in internal cable management ensures a professional finish for maximum display impact.
Specifications
General Information
Manufacturer:
Atdec Pty Ltd
Manufacturer Website Address:
http://www.atdec.com
Brand Name:
Spacedec
Product Model:
SD-DP-420
Product Name:
SD-DP-420 Quick Shift Donut Pole Mounting Kit
Product Type:
Pole Mount
Product Information
Device Supported:
- Flat Panel Display
Maximum Load Capacity:
11.79 kg
Minimum Screen Size Supported:
30.5 cm (12")
Maximum Screen Size Supported:
- 61 cm (24")
Features:
- Swivel
Physical Characteristics
Colour:
- Black
VESA Mount Compatible:
Yes
VESA Mount Standard:
- 100 x 100
- 75 x 75
Material:
- Aluminium
- Steel
- Plastic
Miscellaneous
Package Contents:
- Donut Pole 420mm
- 1 x VESA Plate
- 1 x Quickshift Donut
- 2 x Cable Ball
- 1 x Base Casting
- 2 x Cable Clip
- 1 x Security Screw
- 1 x Bolt Through Washer
- 1 x M8x30mm Screw
- 1 x 2mm Allen Key
- 4 x M4x10mm Screws
- 4 x M4x12mm Screws
- 4 x M4x16mm Screws
- 1 x Desk Clamp Bracket
- 1 x Pressure Plate
- 1 x M8 Desk Clamp Screw
- 1 x 5mm Allen Key
Additional Information:
- Mounts rear of display 95mm from the wall
- Features +/- 40° angular adjustment
- Designed for simple installation
- Pole length: 420mm
- Ball joint mechanism allows 20 degrees of display adjustment in any direction from the vertical plane
- 360 Degree rotation
- Portrait to landscape rotation
- Quick Shift lever allows to quickly move and lock the display freely along a pole without using any tools
- Quick release mechanism for fast display attachment or removal
Compatibility:
LCD
Assembly Required:
- Yes
Warranty
Standard Warranty:
10 Year
Additional Warranty Information:
Parts and Workmanship
