LINKSYS Cisco TelePresence SX10 Video Conference Equipment

CTS-SX10N-K9

This product has been discontinued by the manufacturer

Please visit

LINKSYS Video & Web Conference Equipment

for alternative options.

Description

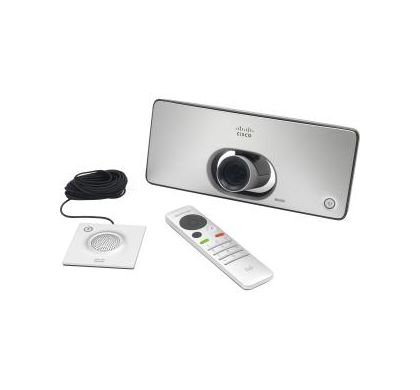

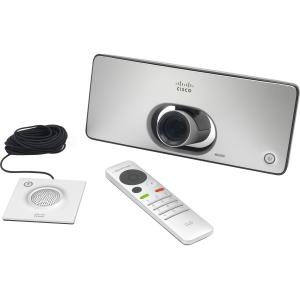

The Cisco TelePresence® SX10 Quick Set is an all-in-one unit designed to video-enable your small collaboration spaces, offering great affordability for small-to-medium businesses just starting out with telepresence. With the SX10 you can extend telepresence pervasively throughout your enterprise.

This low-cost, high-quality unit combines camera and codec into a single, compact device that is mounted over your standard flat-panel display and connects through a discreet single-cable system for Power over Ethernet (PoE). High-definition video is enabled with 1080p30 resolution, while a leadership wide-angle field of view provides the best overview even in small spaces.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
TelePresence
Product Series:
SX
Product Model:
SX10
Product Name:
TelePresence SX10 Quick Set
Product Type:
Video Conference Equipment

Technical Information

ITU-T Recommendation:
SIP
Video Bridging:
Point-to-Point

Video

Graphics Modes (Live):
WXGA
Maximum Video Resolution (Live):
1920 x 1080
Maximum Frame Rate:
60 fps
Video Encoding:
  • H.263
  • H.263+
  • H.264

Audio

Microphone Form Factor:
Internal
Audio Encoding:
  • G.711a
  • G.722
  • G.722.1
  • G.729ab
  • G.729

Network & Communication

Network Technology:
  • 10/100Base-TX
Ethernet Technology:
  • Fast Ethernet

Interfaces/Ports

VGA In:
Yes
HDMI In:
Yes
HDMI Out:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Network (RJ-45):
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
1
Number of HDMI Inputs:
1
Number of HDMI Outputs:
1
Number of Audio Line In:
1
Number of Audio Line Out:
1

Physical Characteristics

Form Factor:
Wall Mountable
Height:
116.8 mm
Width:
274.3 mm
Depth:
91.4 mm
Weight (Approximate):
907.2 g
