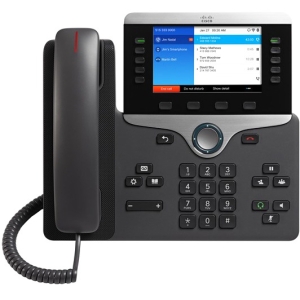

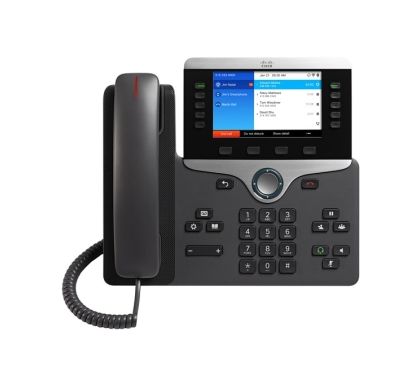

CISCO 8861 IP Phone - Cable - Wall Mountable, Desktop - Black

CP-8861-K9=
Please Call
Please contact us for pricing

Description

The Cisco® IP Phone 8861 is a business-class collaboration endpoint that combines high-fidelity, reliable, secure, and scalable voice communications with Cisco Intelligent Proximity for telephony integration for personal mobile devices to support midsize to large enterprise businesses.

With the IP Phone 8861, you can increase personal productivity through an engaging user experience that is both powerful and easy-to-use. The IP Phone 8861 combines an attractive new ergonomic design with wideband audio for crystal clear voice communications, "always-on" reliability, encrypted voice communications to enhance security, and access to a comprehensive suite of unified communications features from Cisco communication servers.

In addition, Cisco Intelligent Proximity brings the worlds of desk and mobile together for you when you are using your mobile device at the desk for your work. You can move the audio path over to the IP Phone 8861 during active mobile calls to take advantage of its superior audio acoustics. An example would be to share a conversation with a colleague who you want to listen in. This capability gives you greater flexibility and a superior user experience when at your desk.

The IP Phone 8861 comes standard with two USB ports so you can charge your personal mobile devices when at your desk, and stay connected when away from your desk.

The Cisco IP Phone 8861 offers five programmable line keys. You can configure keys to support either multiple directory numbers or calling features such as speed dial. You can also boost productivity by handling multiple calls for each directory number using the multicall-per-line feature. Fixed-function keys give you one-touch access to applications, messaging, directory, as well as often-used calling features such as hold/resume, transfer, and conference. A five-way navigation cluster helps you transition through menus more easily. Backlit acoustic keys provide flexibility for audio path selection and switching.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Series:
8800
Product Model:
8861
Product Name:
IP Phone 8861
Product Type:
IP Phone

Technical Information

IP Phone Technology:
VoIP
Connectivity Technology:
  • Cable
Total Number of Phone Lines:
5
Number of Programmable Phone Lines:
5
Caller ID:
Yes
Speakerphone:
Yes
Features:
  • Viewing the Call Log
  • Multilingual Menu
  • Voice Mail
  • URI Dialing
  • Date and Time
  • Indicator
  • Intercom
  • Hearing Aid
  • Hands-free
  • Bluetooth
  • Auto-answer
  • (BLF) Busy Lamp Field
  • Call Forwarding
  • Call History
  • Call Park
  • Call Pick-up
  • Call Waiting
  • Wi-Fi
Voice Codec:
  • G.711a
  • G.711u
  • G.722
  • G.729a
  • iLBC
  • iSAC
Dialer Type:
Keypad

Display & Graphics

Display Colour:
Colour
Backlight:
Yes
Screen Size:
12.7 cm (5")
Screen Resolution:
800 x 480

Interfaces/Ports

Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
2
USB:
Yes
Number of USB Ports:
2
Headset Port:
Yes
Audio Line Out:
Yes
PoE Port:
Yes

Management & Protocols

Communication Protocols:
  • CDP
  • LLDP-PoE
  • SIP
  • SDP
  • RTP
  • DHCP
  • RTCP
  • LLDP-MED
Quality of Service:
  • 802.1p/q
  • 802.1Q VLAN Support

Controls/Indicators

Buttons & Keys Type:
  • Line
  • Redial
  • Mute
  • Headset
  • Speaker
  • Volume Control
  • Navigation
  • Conference
  • Call Transfer
  • Hold Button
  • Directory
  • Message
  • Application
  • Speed Dial
  • Programmable

Physical Characteristics

Colour:
  • Black
Form Factor:
  • Wall Mountable
  • Desktop
Height:
229.1 mm
Width:
257.3 mm
Depth:
39.9 mm
Weight (Approximate):
1.19 kg

Miscellaneous

Certifications & Standards:
Regulatory compliance:
  • CE Markings per directives 2004/108/EC and 2006/95/EC
Safety:
  • UL 60950 Second Edition
  • CAN/CSA-C22.2 No. 60950 Second Edition
  • EN 60950 Second Edition (including A11 & A12)
  • IEC 60950 Second Edition (including A11 & A12)
  • AS/NZS 60950
  • GB4943
EMC - Emissions:
  • 47CFR Part 15 (CFR 47) Class B
  • AS/NZS CISPR22 Class B
  • CISPR22: 2005 w/Amendment 1: 2005 Class B
  • EN55022: 2006 w/Amendment 1: 2007 Class B
  • ICES003 Class B
  • VCCI Class B
  • EN61000-3-2
  • EN61000-3-3
  • KN22 Class B
EMC - Immunity:
  • EN55024
  • CISPR24
  • EN60601-1-2
  • KN24
  • Armadillo Light
Telecom:
  • FCC Part 68 HAC
  • CS-03-HAC
  • AS/ACIF S004
  • AS/ACIF S040
  • NZ PTC 220
  • Industry Standards: TIA 810 and TIA 920
  • Industry Standards: IEEE 802.3 Ethernet, IEEE 802.3af and 802.3at
  • Korea (RRA Public Notification 2010-36, Nov 01, 2010)
  • Korea (RRA Announce 2011-2, Feb28, 2011)
Radio:
  • FCC Part 15.247 (CFR 47)
  • FCC Part 2.1093 (BT RF Exposure TR)
  • RSS-102 (BT RF Exposure TR)
  • RSS-210
  • EN 300.328
  • EN50385 (BT RF Exposure TR)
  • EN 301-489-1
  • EN 301-489-17
  • EN 301-893
  • NCC LP0002
  • Korea (RRL No. 2006-128, RRL No. 2006-129)
  • Japan Bluetooth GFSK/EDR
Licence:
Enhanced User Connect License
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • Energy Star
