STARTECH PEX1S553LP Serial Adapter

Retail price: $112.19
$111.00
(Includes GST) You save: $1.19 (1%) Save 1%
PEX1S553LP
Please Call
+
Add to favourites

Description

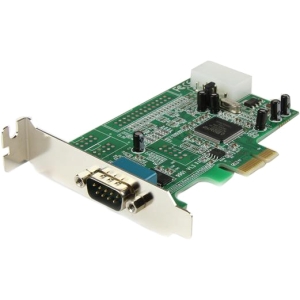

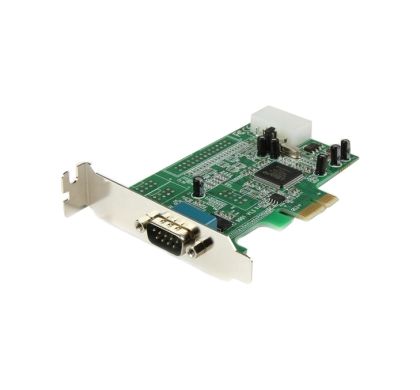

Add a RS-232 serial port to your standard or small form factor computer through a PCI Express expansion slot. The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection.

The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows 2000/XP/2003/Vista/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor).

This product is a replacement for our PEX1S552LP card.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

Specifications

General Information

Manufacturer:
StarTech.com
Manufacturer Website Address:
http://www.startech.com/au
Brand Name:
StarTech.com
Product Model:
PEX1S553LP
Product Name:
1 Port Low Profile PCI Express Serial Card - 16550
Product Type:
Serial Adapter

Technical Information

Host Interface:
  • PCI Express
Data Transfer Rate:
  • 460 kbit/s
UART Type:
16550
Platform Supported:
  • PC

Interfaces/Ports

Number of Serial Ports (External):
1

Physical Characteristics

Form Factor:
Plug-in Card
Card Height:
Dual-profile

Miscellaneous

Package Contents:
  • 1 Port Low Profile PCI Express Serial Card - 16550
  • Full Profile Bracket
Additional Information:
  • Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance.
  • Pre-configured for low profile/half-height systems but includes a full profile bracket for versatility.
  • Easy to install and use with full step-by-step instructions saving time and hassle.
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS

Warranty

Standard Warranty:
2 Year
