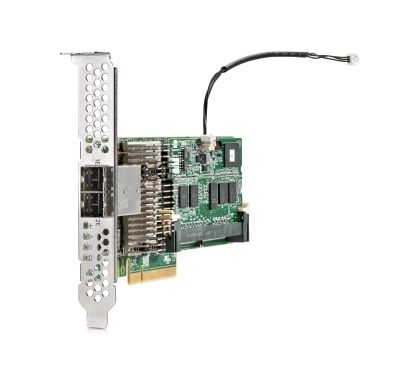

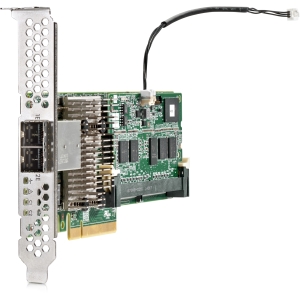

HPE HP Smart Array P441 SAS Controller - 12Gb/s SAS - PCI Express 3.0 x8 Flash Backed Cache - Plug-in Card

726825-B21

This product has been discontinued by the manufacturer

Please visit

HPE SCSI/RAID Controllers

for alternative options.

Description

Are you looking to add additional storage but don't have the room in your server? The HP Smart Array P441 Controller is a low-profile, PCIe3 x8, 12 Gb/s Serial Attached SCSI (SAS) RAID controller that provides enterprise-class storage performance, increased external scalability, and data protection for select HP ProLiant Gen9 rack and tower servers. It features eight external physical links and delivers increased server uptime by providing advanced storage functionality, including online RAID level migration (between any RAID levels) with flash back write cache (FBWC), global online spare, and pre-failure warning.

This controller includes transportable FBWC allowing the data in the cache to be migrated to a new controller. The Gen9 family of controllers supports the HP Smart Storage Battery. With HP Smart Storage Battery, multiple Smart Array controllers are supported without needing additional backup power sources for each controller, resulting in simple upgrade process.

Specifications

General Information

Manufacturer:
Hewlett Packard Enterprise
Manufacturer Website Address:
https://www.hpe.com/au/
Brand Name:
HP
Product Family:
Smart Array
Product Model:
P441
Product Name:
Smart Array P441/4GB FBWC 12Gb 2-ports Ext SAS Controller
Product Type:
SAS Controller

Technical Information

Host Interface:
  • PCI Express 3.0 x8
Controller Type:
  • 12Gb/s SAS
RAID Supported:
Yes
RAID Levels:
  • JBOD
Data Backup Type:
Flash Backed Cache

Interfaces/Ports

Total Number of SAS Ports:
2
Number of SAS Ports (External):
2

Physical Characteristics

Height:
57.2 mm
Width:
190.5 mm
Depth:
241.3 mm
Form Factor:
Plug-in Card
Weight (Approximate):
450 g

Miscellaneous

Green Compliant:
Yes
