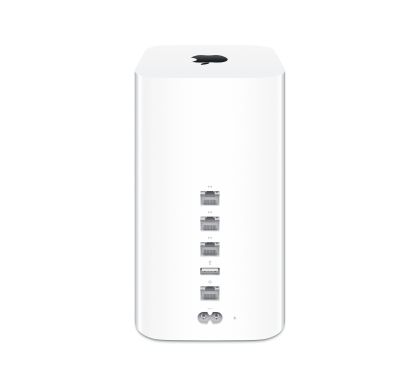

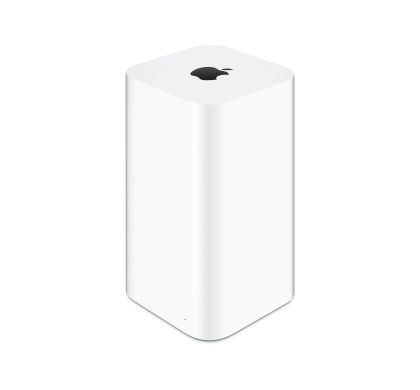

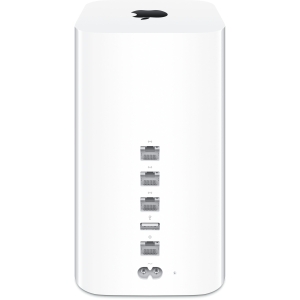

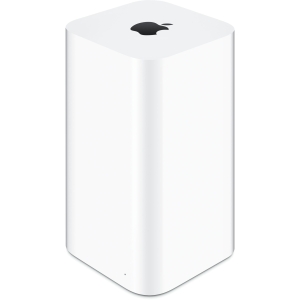

Apple AirPort Extreme IEEE 802.11ac Wireless Router

Apple AirPort Extreme IEEE 802.11ac Wireless Router
ME918X/A

This product has been discontinued by the manufacturer

Please visit

APPLE Wireless Routers

for alternative options.

Description

Up to 3x faster Wi-Fi base station.

AirPort Extreme goes to a new extreme.

802.11ac. The new definition of fast.

With three-stream 802.11ac technology, the AirPort Extreme Base Station takes Wi-Fi speeds over the top. Now you can reach data rates of up to 1.3 Gbps - triple the previous 802.11n standard. Which means up to three times faster Wi-Fi. You also get double the channel bandwidth, with 80MHz-wide channels providing more room for more data to flow faster than ever. And if you have 802.11a/b/g/n devices, AirPort Extreme maximizes that connection as well. What you do with all that extra speed is up to you.

Specifications

General Information

Manufacturer:
Apple, Inc
Manufacturer Website Address:
http://www.apple.com/au
Brand Name:
Apple
Product Family:
AirPort Extreme
Product Name:
AirPort Extreme
Product Type:
Wireless Router

Wireless Specifications

Broadband Transmission Technology:
Ethernet
Wi-Fi Standard:
  • IEEE 802.11ac
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Total Number of Antennas:
6
Wireless Transmission Speed:
1300 Mbps
Wireless Security:
    • WPA
    • WPA2
    • WPA Enterprise
    • WPA2 Enterprise
    • MAC Address Filtering
    • IEEE 802.1X
Features:
  • Print Server
  • Hard Drive Sharing

Interfaces/Ports

Number of Network (RJ-45) Ports:
3
Network (RJ-11):
No
VGA:
No
Serial:
No
USB:
Yes
Powerline:
No
PoE Port:
No
Management Port:
No
Number of Broadband (RJ-45) Ports:
1

Network & Communication

Ethernet Technology:
  • Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
VPN Supported:
Yes

Management & Protocols

Management:
    • AirPort Utility
    • DHCP
Security Features:
  • Firewall
  • Malware Protection
  • Guest Access
  • NAT
  • PPPoE
  • VPN Passthrough (IPSec, PPTP, and L2TP)
  • DNS Proxy
  • PEAP
  • LEAP
  • TTLS
  • TLS
  • FAST
  • Time-based Access Control

Power Description

Input Voltage:
  • 110 V AC
  • 220 V AC
Power Source:
  • AC Supply

Physical Characteristics

Form Factor:
Desktop
Height:
167.6 mm
Width:
97.8 mm
Depth:
97.8 mm
Weight (Approximate):
943.5 g

Miscellaneous

Package Contents:
  • AirPort Extreme
  • Printed Documentation
  • Power Lead
System Requirements:
Operating Systems:
  • MAC OS X v10.2.7 or Later
  • Windows XP SP3
  • Windows Vista SP2
  • Windows 7 SP1
  • Windows 8
  • iOS 5 or Later
Certifications & Standards:
Agency Approval:
  • FCC Part 15 Class B
  • Canada RSS-210
  • EN 300-328
  • EN 301-489
  • EN 301 893
  • ARIB STD-T66
  • RCR STD-T33
  • AS/NZS 4268: 2003
  • UL 60950
  • CSA-C22.2 No. 60950
  • GB 4943.1-2011
IEEE Standards:
  • 802.3
  • 802.3u
  • 802.3ab
  • 802.11ac
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.1X
