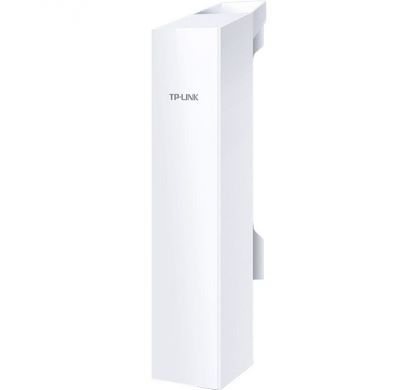

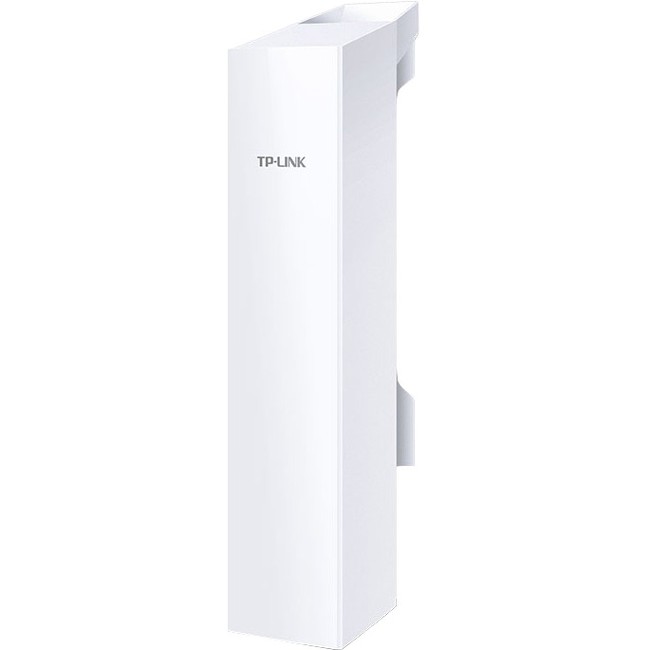

TP-LINK CPE220 IEEE 802.11n 300 Mbit/s Wireless Bridge

TP-LINK CPE220 IEEE 802.11n 300 Mbit/s Wireless Bridge
CPE220
Please Call
Please contact us for pricing

Description

  • Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
  • Adjustable transmission power from 0 to 30dBm/1000mw
  • System-level optimizations for more than 13km long range wireless transmission
  • TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
  • Centralized Management System - Pharos Control
  • AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
  • Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
TP-LINK's 2.4GHz 300Mbps 12dBi Outdoor CPE, the CPE220 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE220 an ideal choice for both business and home users.

Enterprise Hardware

With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE220 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).

Advanced Antenna System

Built-in High Gain Dual-Polarized Antenna Dedicated metal reflector ensures higher gain and lower noise interference

13km+ Wireless Data Transmission

Specially designed for outdoor uses, ideal for long distance wireless data transmission over 13km+, tested in the field.

TP-LINK MAXtream TDMA Technology

As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE220 uses MAXtream TDMA Technology.

Pharos Control - Centralized Management System

CPE220 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

Specifications

General Information

Manufacturer:
TP-LINK Technologies Co., Ltd
Manufacturer Website Address:
http://www.tp-link.com.au
Brand Name:
TP-LINK
Product Model:
CPE220
Product Name:
2.4GHz 300Mbps 12dBi Outdoor CPE
Product Type:
Wireless Bridge

Technical Information

Wi-Fi Standard:
  • IEEE 802.11n
Outdoor Antenna Range:
20 km
Wireless Transmission Speed:
300 Mbit/s
MIMO Technology:
Yes

Interfaces/Ports

Number of Network (RJ-45) Ports:
2
PoE Port:
Yes
VGA:
No
HDMI:
No
USB:
No
Powerline:
No
Management Port:
No

Physical Characteristics

Form Factor:
Pole-mountable
Height:
276 mm
Width:
79 mm
Depth:
60 mm
