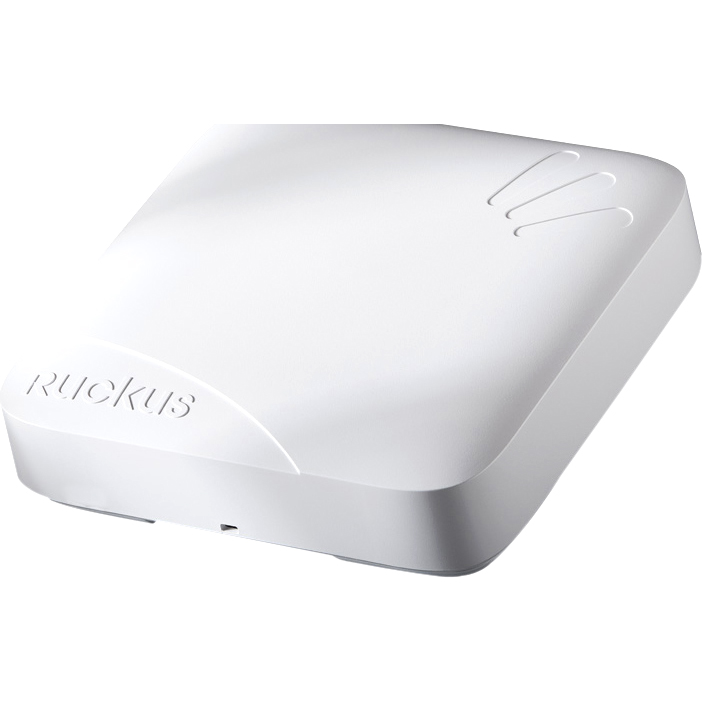

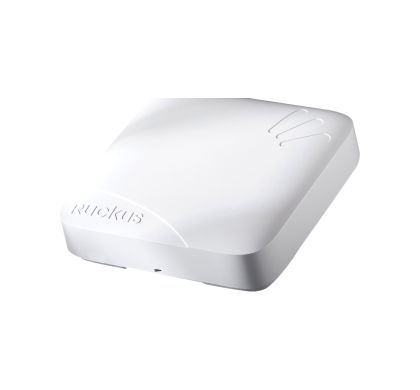

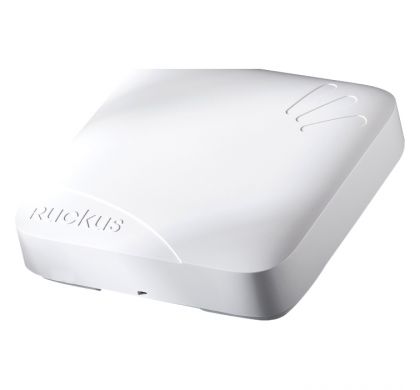

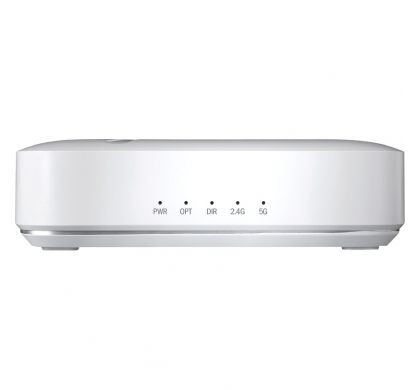

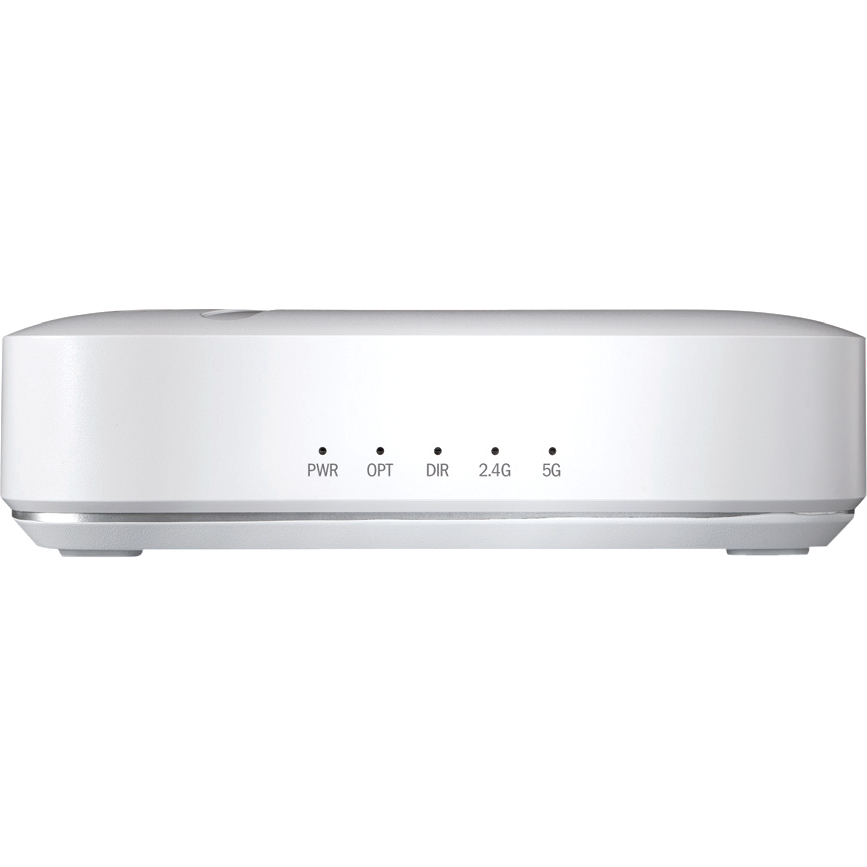

RUCKUS Wireless ZoneFlex 7982 IEEE 802.11n 450 Mbit/s Wireless Access Point - ISM Band - UNII Band

901-7982-WW00

This product has been discontinued by the manufacturer

Please visit

RUCKUS Wireless Access Points/Bridges

for alternative options.

Description

One of the Industry's Highest Capacity, Highest Performing Three-stream ZoneFlex 7982 802.11n Smart Wi-Fi Access Point for Carriers and Enterprises

For enterprises and carriers requiring increased wireless performance, capacity, unparalleled ease of use and greater business value, particularly within high-density environments, the ZoneFlex 7982 is one of the most reliable and highest performing product in the industry. The ZoneFlex 7982 delivers consistent performance and maintains stable connections within high-capacity environments and to smart mobile devices that constantly change their location and orientation. The simple variation of a device's orientation can account for up to a 5x performance degradation among Wi-Fi products unable to adapt to such changes. To address these challenges, the ZoneFlex 7982 is the only three-stream 802.11n access point to combine dynamic polarization diversity with adaptive antenna arrays and transmit beamforming to give customers up to a 4x improvement in Wi-Fi performance, signal gain and reception.

Specifications

General Information

Manufacturer:
Ruckus Wireless, Inc
Manufacturer Website Address:
http://www.ruckuswireless.com
Brand Name:
Ruckus Wireless
Product Family:
ZoneFlex
Product Model:
7982
Product Name:
ZoneFlex 7982 Dual Band 802.11n Access Point
Product Type:
Wireless Access Point

Technical Information

Wi-Fi Standard:
  • IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.85 GHz
Antenna Gain:
  • 8 dBi
Wireless Transmission Speed:
450 Mbit/s
Wireless Security:
    • WEP
    • WPA-PSK
    • WPA
    • TKIP
    • WPA2
    • AES
    • IEEE 802.11i
    • IEEE 802.1X
    • RADIUS
Features:
  • MIMO Technology
  • Quality of Service (QoS)
  • Cable Lock Slot

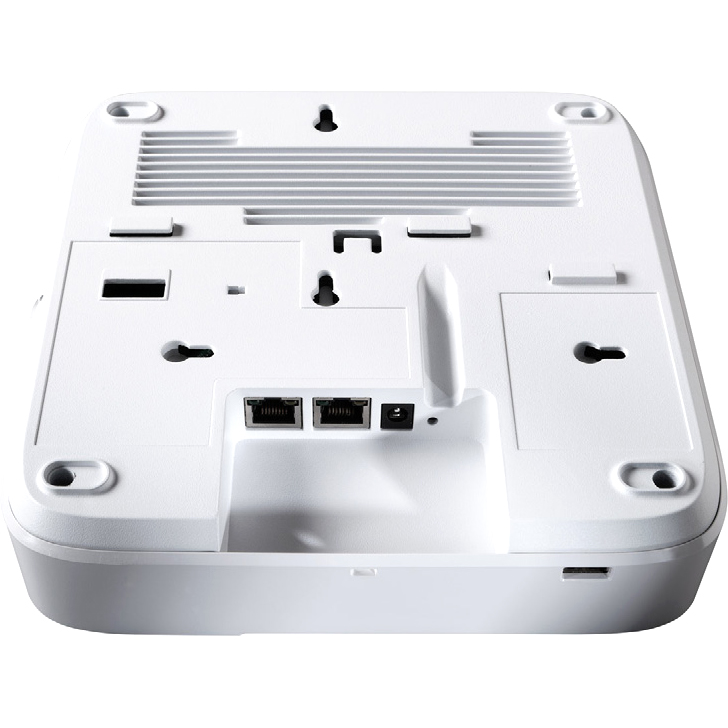

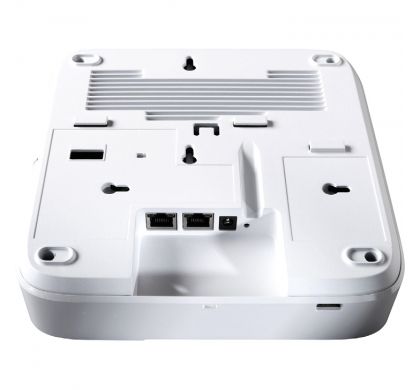

Interfaces/Ports

Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
Yes
10Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
2
Network (RJ-11):
No
PoE Port:
No
VGA:
No
HDMI:
No
Audio Line Out:
No
Serial Port:
No
USB:
No
Powerline:
No

Management & Protocols

Management:
    • Web Based Management
    • CLI
    • Telnet
    • SNMP
    • TR-069

Power Description

Input Voltage:
  • 12 V DC
Power Source:
  • AC Adapter
  • PoE

Physical Characteristics

Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
50 mm
Width:
203 mm
Depth:
203 mm

Miscellaneous

Certifications & Standards:
Regulatory:
  • EN 60601-1-2
  • UL 2043
  • EN50121-1
  • EMC
  • EN50121-4
  • IEC 61373
IEEE Standards:
  • 802.3af
  • 802.3at
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
  • 802.11i
  • 802.1X
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
  • WEEE
