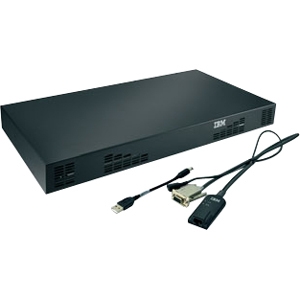

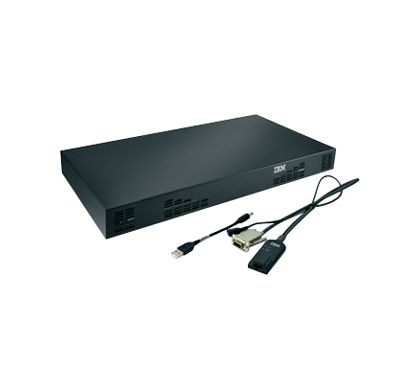

LENOVO GCM16 KVM Switchbox

LENOVO GCM16 KVM Switchbox
1754D1X
Please Call
Please contact us for pricing

Description

The IBM Global 2X2X16 Console Manager (GCM16) and IBM Global 4X2X32 Console Manager (GCM32) are the next generation digital keyboard-video-mouse (KVM) console managers that provide KVM-over-IP and serial console management technology in a single appliance. Either console lets you access and manage all servers remotely, even to the system BIOS, using your existing IP infrastructure. The GCM16 has 16 target ports and supports up to 2 local users and 2 remote users, and the GCM32 has 32 target ports and supports up to 2 local users and 4 remote users. Figure 1 shows these two models.

Specifications

General Information

Manufacturer:
Lenovo Group Limited
Manufacturer Website Address:
http://www3.lenovo.com/au/en
Brand Name:
Lenovo
Product Model:
GCM16
Product Name:
GCM16 KVM Switch
Product Type:
KVM Switchbox

Technical Information

Number of Computers Supported:
16
Daisy Chain Supported:
Yes
Number of Local Users Supported:
2
Number of Remote Users Supported:
2

Video

Graphic Mode:
  • WSXGA+
Maximum Video Resolution:
1680 x 1050

Interfaces/Ports

Network (RJ-45):
Yes
USB:
Yes
VGA:
Yes
Number of Network (RJ-45) Ports:
3
Number of USB Ports:
4
Number of VGA Ports:
1

Power Description

Input Voltage:
  • 220 V AC
  • 110 V AC

Physical Characteristics

Form Factor:
Rack-mountable
Rack Height:
1U
Height:
43.7 mm
Width:
431.8 mm
Depth:
324 mm
Weight (Approximate):
3.18 kg

Miscellaneous

Package Contents:
  • GCM16 KVM Switch
  • Mounting Hardware
  • 1 x 1U Filler Panel
  • 2 x C13/C14 Rack Power Cables
  • RJ45-DB9F DCE Adapter
  • RJ45-DB9M DTE Adapter
  • 16 Terminators
  • Installation Publications and Warranty

Warranty

Standard Warranty:
3 Year
