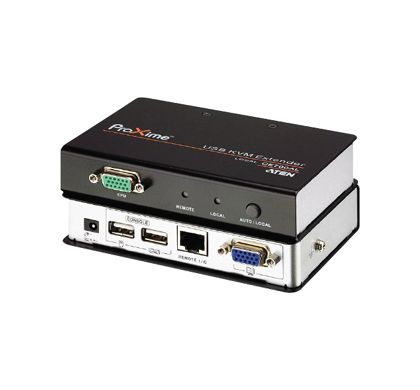

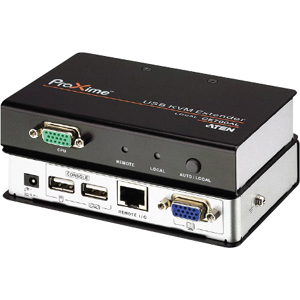

Aten ProXime CE700A Analog KVM Console/Extender - Wired

Aten ProXime CE700A Analog KVM Console/Extender - Wired
CE-700A

This product has been discontinued by the manufacturer

Please visit

ATEN KVM Consoles/Extenders

for alternative options.

Description

The CE700A is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard, monitor, and USB mouse).

Specifications

General Information

Manufacturer:
Aten Technologies
Manufacturer Website Address:
http://www.aten.com
Brand Name:
Aten
Product Family:
ProXime
Product Model:
CE700A
Product Name:
Proxime CE700A KVM Console/Extender
Product Type:
KVM Console/Extender

Technical Information

Connectivity Technology:
  • Wired
KVM Technology:
Analog
Number of Computers Supported:
1
Number of Local Users Supported:
1
Number of Remote Users Supported:
1
Maximum Operating Distance:
150 m

Video

Graphic Mode:
  • WUXGA
Maximum Video Resolution:
1920 x 1200

Interfaces/Ports

Network (RJ-45):
Yes
USB:
Yes
VGA:
Yes
Proprietary Interface:
Yes
Number of VGA Ports:
2
Number of Network (RJ-45) Ports:
2
Number of USB Ports:
4

Power Description

Input Voltage:
  • 5.3 V DC

Physical Characteristics

Form Factor:
Rack-mountable
Transmitter Weight (Approximate):
320 g
Receiver Weight (Approximate):
310 g

Miscellaneous

Package Contents:
  • Proxime CE700A KVM Console/Extender
  • 2 x Power Adapters
  • 1 x USB KVM Cable
  • 2 x Grounding Wires
  • 1 x Rack Mount Kit
  • 1 x User Manual
  • 1 x Quick Start Guide
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS
  • WEEE
