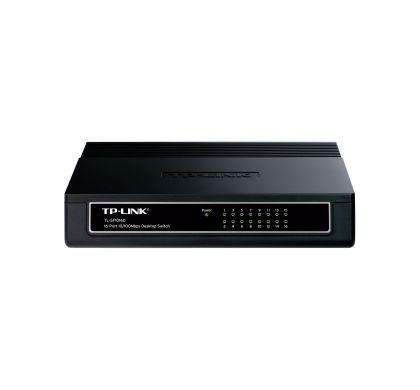

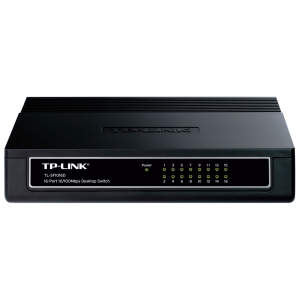

TP-LINK TL-SF1016D 16 Ports Ethernet Switch
Description
TL-SF1016D Fast Ethernet Switch provides 16 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server.
Specifications
General Information
Manufacturer:
TP-LINK Technologies Co., Ltd
Manufacturer Website Address:
http://www.tp-link.com.au
Brand Name:
TP-LINK
Product Model:
TL-SF1016D
Product Name:
TL-SF1016D 16-Port 10/100Mbps Desktop Switch
Product Type:
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:
16
Number of Network (RJ-45) Ports:
16
Port/Expansion Slot Details:
16 x Fast Ethernet Network
Media & Performance
Media Type Supported:
- Twisted Pair
Ethernet Technology:
- Fast Ethernet
Network Technology:
- 10/100Base-TX
Network & Communication
Layer Supported:
2
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
Physical Characteristics
Colour:
- Black
Form Factor:
- Desktop
- Wall Mountable
Height:
40.6 mm
Width:
200.7 mm
Depth:
5.6 mm
Miscellaneous
Additional Information:
Features:
- CSMA/CD
- TCP/IP
- Supports IEEE802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode
- Supports MAC address auto-learning and auto-aging
- LED indicators for monitoring power, link, activity
System Requirements:
Operating Systems:
- Windows 98SE, NT, 2000, XP, Vista , 7
- MAC OS X
- NetWare
- UNIX
- Linux
