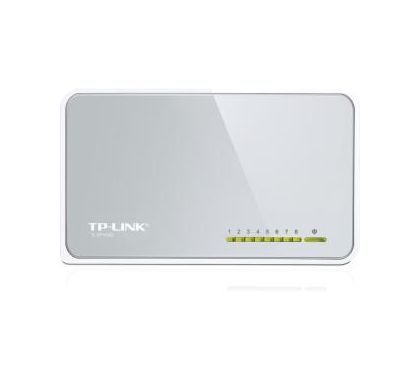

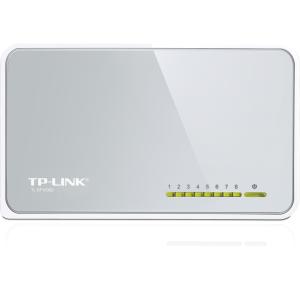

TP-LINK TL-SF1008D 8 Ports Ethernet Switch
Description
TL-SF1005D Fast Ethernet Switch provides 8 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. The Switch is Plug-and-Play and each port can be used as general ports or Uplink ports and can be simply plugged into a server, a hub or a switch.
Specifications
General Information
Manufacturer:
TP-LINK Technologies Co., Ltd
Manufacturer Website Address:
http://www.tp-link.com.au
Brand Name:
TP-LINK
Product Model:
TL-SF1008D
Product Name:
TL-SF1008D 8- port mini Desktop Swtich
Product Type:
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:
8
Number of Network (RJ-45) Ports:
8
Port/Expansion Slot Details:
8 x Fast Ethernet Network
Media & Performance
Ethernet Technology:
- Fast Ethernet
Network Technology:
- 10/100Base-TX
Network & Communication
Layer Supported:
2
Physical Characteristics
Form Factor:
- Desktop
- Wall Mountable
Height:
27.9 mm
Width:
139.7 mm
Depth:
86.4 mm
Miscellaneous
Package Contents:
- TL-SF1008D Fast Ethernet Switch
- Power Adapter
- User Guide
Additional Information:
Features:
- CSMA/CD
- TCP/IP
- Supports IEEE802.3x flow control for Full Duplex mode and back pressure for Half Duplex mode
- Supports MAC address auto-learning and auto-aging
- LED indicators for monitoring power, link, activity
