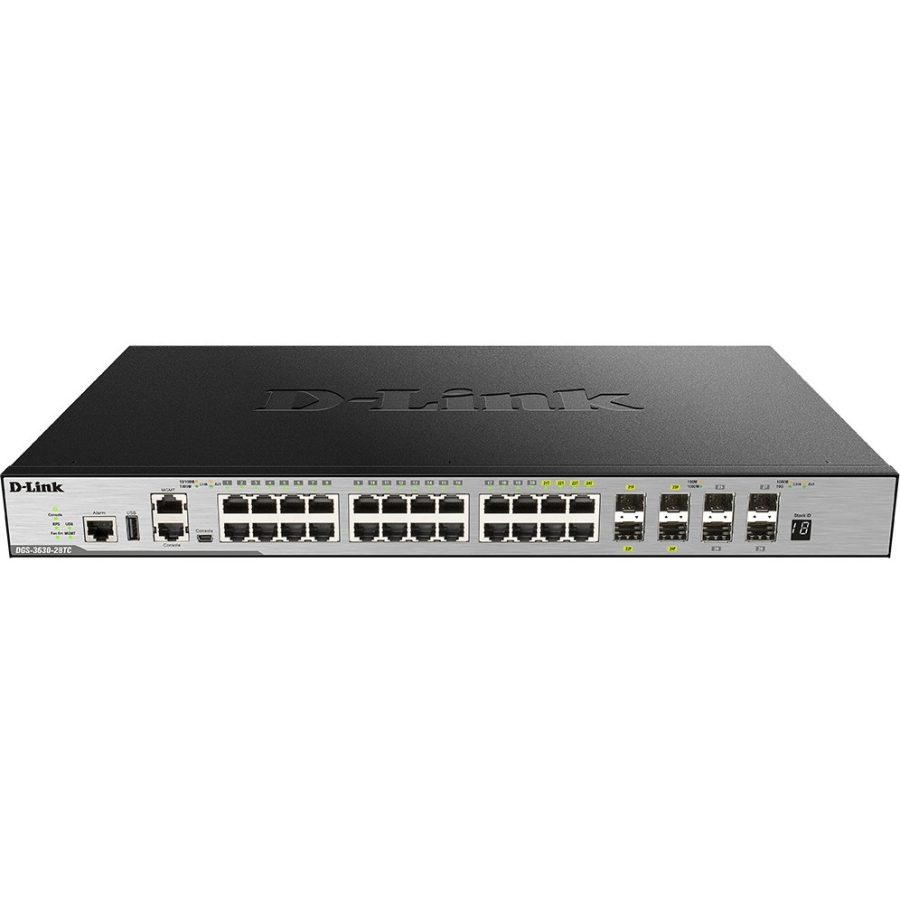

D-LINK DGS-3630-28TC 24 Ports Manageable Layer 3 Switch

DGS-3630-28TC
Please Call
Please contact us for pricing

Description

The DGS-3630 Series Layer 3 Stackable Managed Switches are a range of switches designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), enterprises, and ISPs.They deliver high performance, flexibility, fault tolerance, and advanced software features for maximum return on investment. With Gigabit Ethernet SFP, 10 GbE SFP+, security features, and advanced Quality of Service (QoS), the DGS-3630 Series can act as core, distribution or access layer switches. High port densities, switch stacking, and easy management make the DGS-3630 Series suitable for a variety of applications.

Standard, Enhanced, and MPLS Images

The DGS-3630 Series is designed for use with three different software images: the Standard Image (SI), the Enhanced Image (EI), and the MPLS Image (MI). The Standard Image providescore SMB and SME functionality, such as L2 switching, entry-level routing, L2 multicast, advanced QoS, Operations, Administration, and Maintenance (OAM), and robust security features.The Enhanced Image supports full L3 routing for enterprise integration, including OSPF, BGP, VRF-Lite and L3 multicast. The MPLS Image offers VPN services for ISPs, including IS-IS and MPLS L2/L3 VPN. With multiple software images, only the required features need to be installed, providing a flexible approach to software management.

High Availability and Flexibility

The DGS-3630 Series includes stacking technology, which allows multiple switches to be combined to form a single physical or virtual stack. This increases redundancy over multiplephysical units, simplifies management, and provides a single IP address to manage all members in the stack. Up to 9 switches can be combined using Direct Attach Cables to make up to 432 Gigabit Ethernet ports available, allowing switching capacity to be increased with demand.The Switch Resource Management (SRM) feature allows the hardware table size to be changed, so that switch functions can be optimized based on the use of the switch. There are 3 modes: IP Mode, LAN Mode, and L2 VPN Mode, which modify the size of the Layer 2 and 3 tables for optimum efficiency.

Security, Performance & Availability

The DGS-3630 Series provides a complete set of security features including multi-layer Access Control Lists (ACLs) and 802.1X user authentication via TACACS+ and RADIUS. The DGS-3630 Series also offers extensive VLAN support, including GVRP and 802.1Q VLAN to enhance security and performance. A robust set of QoS features help ensure that critical network services such as Voice over IP and video conferencing are given high priority through the network. The D-Link Safeguard Engine increases the switch's reliability, serviceability, and availability by preventing malicious flooding traffic caused by worms or virus attacks.

D-Link Green Technology

The DGS-3630 Series features D-Link Green technology, which includes a power-saving mode, smart fan feature, reduced heat dissipation, and cable length detection. The power-saving feature automatically powers down ports that have no link or link partner, and ensures that LEDs are shut off when notneeded. The smart fan3 feature allows for the built-in fans to automatically turn on only at a certain temperature, providing continuous, reliable, and ecofriendly operation of the switch.

Specifications

General Information

Manufacturer:
D-Link Systems, Inc
Manufacturer Website Address:
http://www.dlink.com.au
Brand Name:
D-Link
Product Series:
DGS-3630
Product Model:
DGS-3630-28TC
Product Name:
DGS-3630-28TC Switch
Packaged Quantity:
1
Product Type:
Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports:
24
Modular:
Yes
Stack Port:
Yes
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet Network
  • 4 x Gigabit Ethernet Expansion Slot
  • 4 x 10 Gigabit Ethernet Stack

Media & Performance

Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X
  • 10GBase-X

I/O Expansions

Number of Total Expansion Slots:
8
Expansion Slot Type:
  • SFP
  • SFP+
Shared SFP Slot:
Yes
Number of SFP Slots:
4
Number of SFP+ Slots:
4

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes

Power Description

Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
44 mm
Width:
441 mm
Depth:
259.8 mm
Weight (Approximate):
3.74 kg

Miscellaneous

Package Contents:
  • DGS-3630-28TC Switch
  • 1 x Quick Installation Guide
  • 1 x AC power cord
  • 1 x Console cable (RJ45 to RS-232)
  • 1 x Console cable (USB to mini-USB)
  • 1 x Rack mounting kit (two brackets and screws)
  • 4 x Rubber feet with adhesive backing
  • 1 x Power cord retainer set
  • 1 x CD containing the Web UI Reference Guide, CLI Reference Guide, D-View module, and additional software
