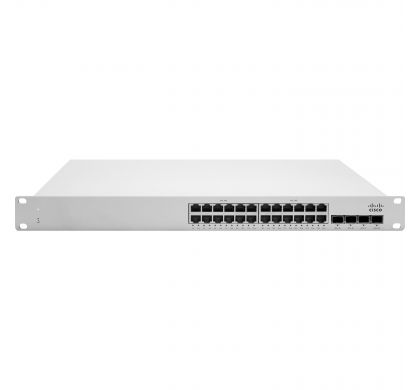

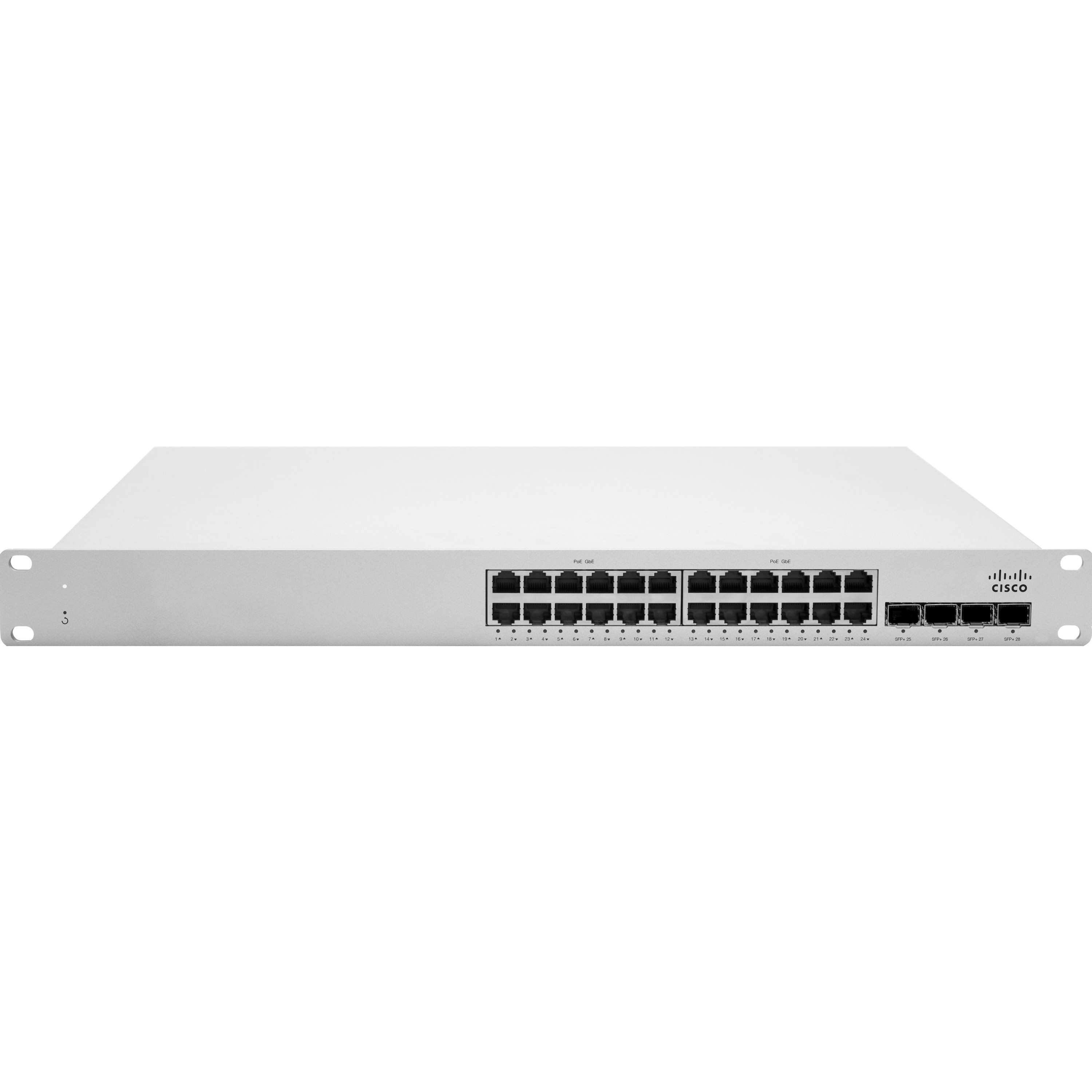

CISCO Meraki MS250-24 24 Ports Manageable Ethernet Switch

MS250-24-HW
Please Call
Please contact us for pricing

Description

CLOUD MANAGED STACKABLE ACCESS SWITCHES

The Cisco Meraki MS250 series switches provide reliable access switching ideal for deploying in branches and small campuses. With stacking capabilities and 10G SFP+ uplinks on every model, redundancy and performance are guaranteed. This family also supports redundant, field-replaceable power supplies for mission critical networks.

Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.

The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there's no need for complicatedconfiguration files, or even direct physical access to the switch.

Meraki's centralized management gives administrators deep visibility into the network and how it's used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.

INDUSTRY LEADING CLOUD MANAGEMENT

Cloud management has a number of benefits that make it easier to build networks large and small:
  • True zero-touch device provisioning
  • Virtual stacking: manage up to thousands of ports from a single pane of glass.
  • Application layer visibility with automatic operating system, client, and hostname fingerprinting.
  • Powerful Live Tools such as packet capture and cable test to isolate and troubleshoot network issues.
  • Alerts upon power loss, downtime, or configuration changes.
  • Role-based administration and automatic, scheduled firmware upgrades over the web.
  • Regular feature updates and enhancements delivered ondemand from the Meraki cloud.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Meraki
Product Series:
MS
Product Model:
MS250-24
Product Name:
MS250-24 Ethernet Switch
Product Type:
Ethernet Switch

Interfaces/Ports

Total Number of Network Ports:
24
Uplink Port:
Yes
Modular:
Yes
Stack Port:
Yes
Port/Expansion Slot Details:
  • 24 x Gigabit Ethernet Network
  • 4 x 10 Gigabit Ethernet Uplink
  • 2 x Stack

Media & Performance

Media Type Supported:
  • Twisted Pair
  • Optical Fiber
Ethernet Technology:
  • Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 10GBase-X

I/O Expansions

Number of Total Expansion Slots:
6
Expansion Slot Type:
  • SFP+
Shared SFP Slot:
No
Number of SFP+ Slots:
4

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes

Power Description

Power Source:
  • Power Supply

Physical Characteristics

Compatible Rack Unit:
1U
Form Factor:
  • Rack-mountable
  • Desktop
Height:
43.7 mm
Width:
484.6 mm
Depth:
416.3 mm
Weight (Approximate):
4.49 kg
