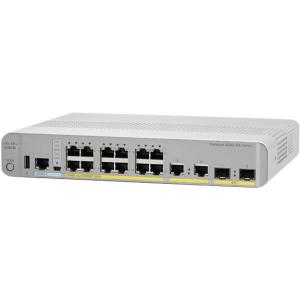

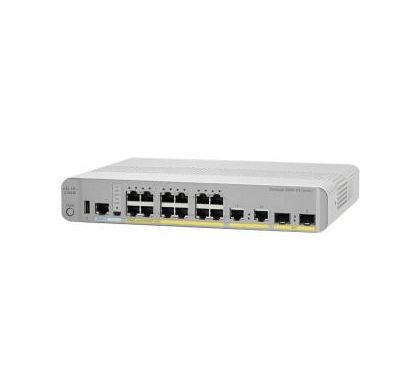

CISCO Catalyst 3560CX-12PC-S 12 Ports Manageable Layer 3 Switch

WS-C3560CX-12PC-S
Available
Please contact us for pricing

Description

The Cisco Catalyst 3560-CX and 2960-CX Series Compact Switches help optimize network deployments. These Gigabit Ethernet (GbE) managed switches are ideal for high-speed data connectivity, Wi-Fi backhaul, and Power over Ethernet (PoE) connectivity in places where space is at a premium. With a single copper or fiber cable from the wiring closet, Catalyst compact switches enable IP connectivity for devices such as IP phones, wireless access points, surveillance cameras, PCs, and video endpoints.

With their quiet, fan-less design and compact footprint, these switches offer flexible mounting options and open up a variety of network design and connectivity options. Use them in offices, classrooms, hotels, retail stores, and other enterprise and branch locations. The setup allows for shorter cable runs from the compact switches, allowing for flexibility in space redesign and growth as new devices join the network - this eliminating the need for expensive and inflexible cabling infrastructure.

Specifications

General Information

Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Catalyst
Product Series:
3560-CX
Product Model:
3560CX-12PC-S
Product Name:
3560CX-12PC-S Layer 3 Switch
Product Type:
Layer 3 Switch

Interfaces/Ports

Total Number of Network Ports:
12
Token Ring Port:
No
LRE Port:
No
Uplink Port:
Yes
Bypass:
No
Modular:
No
Management Port:
No
USB:
No
Number of PoE+ Ports:
12
Stack Port:
No
Number of Network (RJ-45) Ports:
2
Port/Expansion Slot Details:
  • 2 x Gigabit Ethernet Expansion Slot
  • 2 x Gigabit Ethernet Uplink
  • 12 x Gigabit Ethernet Network

Media & Performance

Media Type Supported:
  • Optical Fiber
  • Twisted Pair
Ethernet Technology:
  • Gigabit Ethernet
Network Technology:
  • 10/100/1000Base-T
  • 1000Base-X

I/O Expansions

Number of Total Expansion Slots:
2
Expansion Slot Type:
  • SFP
Shared SFP Slot:
No
Number of SFP Slots:
2

Network & Communication

Layer Supported:
3

Management & Protocols

Manageable:
Yes
Management:
    • DHCP
    • RMON
    • VLAN
    • SNMP v1, 2c, 3
    • Telnet
    • CLI
    • QoS

Memory

Standard Memory:
  • 512 MB
Memory Technology:
DRAM
Flash Memory:
128 MB

Reliability

MTBF:
553140 Hour

Power Description

PoE Port:
Yes
Input Voltage:
  • 120 V AC
  • 230 V AC
Power Source:
  • Power Supply

Physical Characteristics

Form Factor:
  • Rail-mountable
  • Rack-mountable
  • Desktop
Height:
44.5 mm
Width:
269.2 mm
Depth:
238.8 mm
Weight (Approximate):
2.31 kg

Miscellaneous

Certifications & Standards:
IEEE Standards:
  • 802.1D Spanning Tree Protocol
  • 802.1p CoS Prioritization
  • 802.1Q VLAN
  • 802.1s
  • 802.1w
  • 802.1x
  • 802.1AB (LLDP)
  • 802.3ad
  • 802.3af
  • 802.3ah(100BASE-X single/multimode fiber only)
  • 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
  • 802.3 10BASE-T specification
  • 802.3u 100BASE-TX specification
  • 802.3ab 1000BASE-T specification
  • 802.3z 1000BASE-X specification
Safety:
  • UL 60950-1
  • CAN/CSA 22.2 No. 60950-1
  • EN 60950-1
  • IEC 60950-1
  • CE Marking
  • GB 4943
  • IEC 60825
Electromagnetic emissions certifications:
  • FCC Part 15, CFR 47, Class A, North America
  • EN 55022 (CISPR22) and EN 55024 (CISPR24), CE marking, European Union
  • AS/NZS, Class A, CISPR22:2004 or EN55022, Australia and New Zealand
  • VCCI Class A, V-3/2007.04, Japan
  • KCC (Formerly MIC, GB17625.1-1998) Class A, KN24/KN22, Korea
  • ANATEL, Brazil
  • CCC, China
  • GOST, Russia
Green Compliant:
Yes
Green Compliance Certificate/Authority:
  • RoHS-6

Warranty

Standard Warranty:
