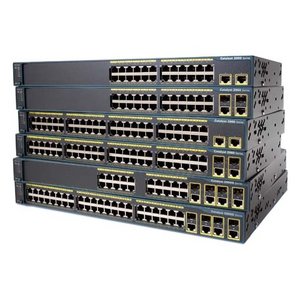

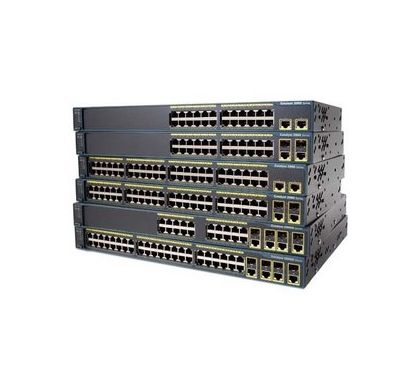

CISCO Catalyst 2960-48TC-L 48 Ports Manageable Ethernet Switch
Description
Cisco Catalyst 2960 Intelligent Ethernet Switch is a new family of fixed-configuration standalone device that provide desktop Fast Ethernet and Gigabit Ethernet connectivity, enabling enhanced LAN services for entry-level enterprise, mid-market, and branch office networks. The Catalyst 2960 offers integrated security, including network admission control (NAC), advanced quality of service (QoS), and resiliency to deliver intelligent services for the network edge.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Catalyst
Product Series:
2960
Product Model:
2960-48TC-L
Product Name:
Catalyst 2960-48TC Ethernet Switch
Product Type:
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:
48
Uplink Port:
Yes
Number of Network (RJ-45) Ports:
48
Port/Expansion Slot Details:
- 2 x Fast Ethernet Expansion Slot
- 2 x Gigabit Ethernet Uplink
- 48 x Fast Ethernet Network
Media & Performance
Media Type Supported:
- Twisted Pair
Twisted Pair Cable Standard:
- Category 5
Ethernet Technology:
- Fast Ethernet
Network Technology:
- 10Base-T
- 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
- SFP
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
- Cisco Network Assistant
- CiscoWorks Support
- Device manager
- Cisco Express Setup
- CiscoView application
- Cisco Network Assistant Software
- Remote Monitoring (RMON)
- Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location
- Network Timing Protocol (NTP) provides an accurate and consistent timestamp to all intranet switches
- Cisco IOS CLI support provides a common user interface and command set with all Cisco routers and Cisco Catalyst desktop switches
- Cisco Service Assurance Agent (SAA) support facilitates service-level management throughout the LAN
- Switching Database Manager templates for security and QoS allow administrators to easily adjust memory allocation to the desired features based on deployment-specific requirements
- VLAN trunks can be created from any port using standards-based 802.1q tagging
- Up to 255 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported.
- Four thousand VLAN IDs are supported
- Voice VLAN simplifies telephony installations by keeping voice traffic on a separate VLAN for easier administration and troubleshooting
- Cisco VTP supports dynamic VLANs and dynamic trunk configuration across all switches
- SNMP v1, v2c, and v3 and Telnet interface support delivers comprehensive in-band management, and a CLI-based management console provides detailed out-of-band management
- Cisco Discovery Protocol Versions 1 and 2 help enable a CiscoWorks network-management station for automatic switch discovery
Memory
Standard Memory:
- 64 MB
Memory Technology:
DRAM
Flash Memory:
32 MB
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
Redundant Power Supply:
Yes
Physical Characteristics
Form Factor:
- Rack-mountable
- Wall Mountable
- Desktop
Height:
43.9 mm
Width:
444.5 mm
Depth:
236.2 mm
Weight (Approximate):
3.63 kg
Miscellaneous
Additional Information:
- Dual-purpose uplink port has one 10/100/1000 Ethernet port and one Small Form-Factor Pluggable (SFP)-based Gigabit Ethernet port, with one port active at a time
- LAN Base Image installed
- Configurable up to 8000 MAC addresses
- Configurable up to 255 IGMP groups
- Superior Redundancy for Fault Backup
- Integrated Cisco IOS Software Features for Bandwidth Optimization
- Advanced QoS
- Granular Rate Limiting
- Networkwide Security Features
