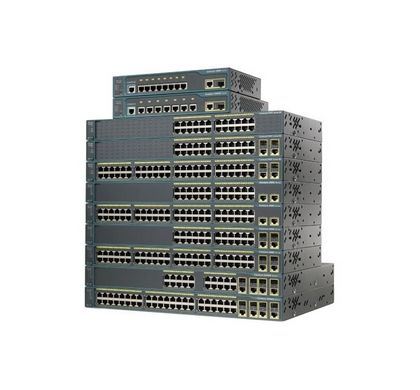

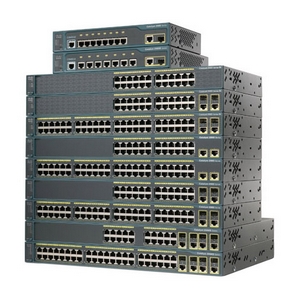

CISCO Catalyst 2960-48TC 48 Ports Manageable Ethernet Switch
Description
Cisco Catalyst 2960-48TC Intelligent Ethernet Switch of fixed-configuration, standalone device that provide desktop Fast Ethernet and Gigabit Ethernet connectivity, enabling enhanced LAN services for entry-level enterprise, mid-market, and branch office networks. The Catalyst 2960-48TC offers integrated security, including network admission control (NAC), advanced quality of service (QoS), and resiliency to deliver intelligent services for the network edge.
Specifications
General Information
Manufacturer:
Cisco Systems, Inc
Manufacturer Website Address:
http://www.cisco.com/c/en_au
Brand Name:
Cisco
Product Family:
Catalyst
Product Series:
2960
Product Model:
2960-48TC
Product Name:
Catalyst 2960-48TC Managed Ethernet Switch
Product Type:
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports:
48
Uplink Port:
Yes
Number of Network (RJ-45) Ports:
48
Port/Expansion Slot Details:
- 2 x Gigabit Ethernet Expansion Slot
- 2 x Gigabit Ethernet Uplink
- 48 x Fast Ethernet Network
Media & Performance
Media Type Supported:
- Twisted Pair
Twisted Pair Cable Standard:
- Category 5
Ethernet Technology:
- Fast Ethernet
Network Technology:
- 10Base-T
- 100/1000Base-T
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
- SFP
Number of SFP Slots:
2
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
Yes
Management:
- CLI
- Telnet
- Syslog
- DHCP
- Web interface
- CiscoWorks
- SNMPv1, v2c, and v3
- Cisco Express Setup
- IEEE 802.1p QoS
- IEEE 802.1Q VLAN
- Cisco Service Assurance Agent
- Cisco Network Assistant software
- RMON groups (history, statistics, alarms, and events)
Memory
Standard Memory:
- 64 MB
Memory Technology:
DRAM
Flash Memory:
32 MB
Power Description
Input Voltage:
- 110 V AC
- 220 V AC
Power Source:
- Power Supply
Redundant Power Supply:
Yes
Physical Characteristics
Height:
43.9 mm
Width:
444.5 mm
Depth:
236.2 mm
Weight (Approximate):
3.63 kg
Miscellaneous
System Requirements:
- Disk space: 200 MB
- Hardware: PC with 1 GHz
- Memory: 1 GB
- PC hardware: 1 GHz
- Screen Resolution: 1024 x 768
- Windows 2000 Professional (Service Pack 4 or later)
- Windows 2003 Server
- Windows XP Professional (Service Pack 2 or later)
- Windows Vista Ultimate
- Windows 7
- Macintosh OS X
